ELT-315SYGWA/S530-E2 - Everlight

Description: LED Displays & Accessories Triple Digit Display

Download ELT-315SYGWA/S530-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

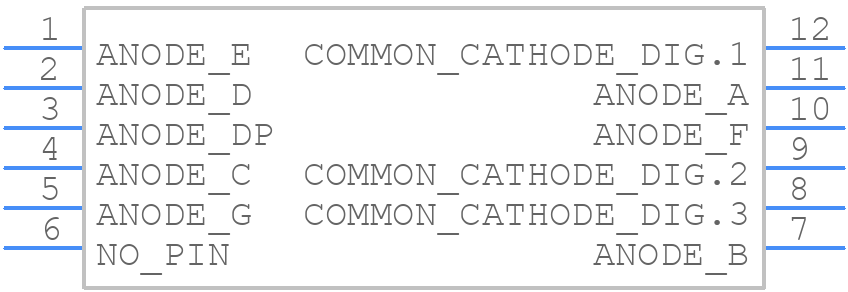

ELT-315SYGWA/S530-E2 - Everlight - PCB symbol
click to zoom
PCB Footprints

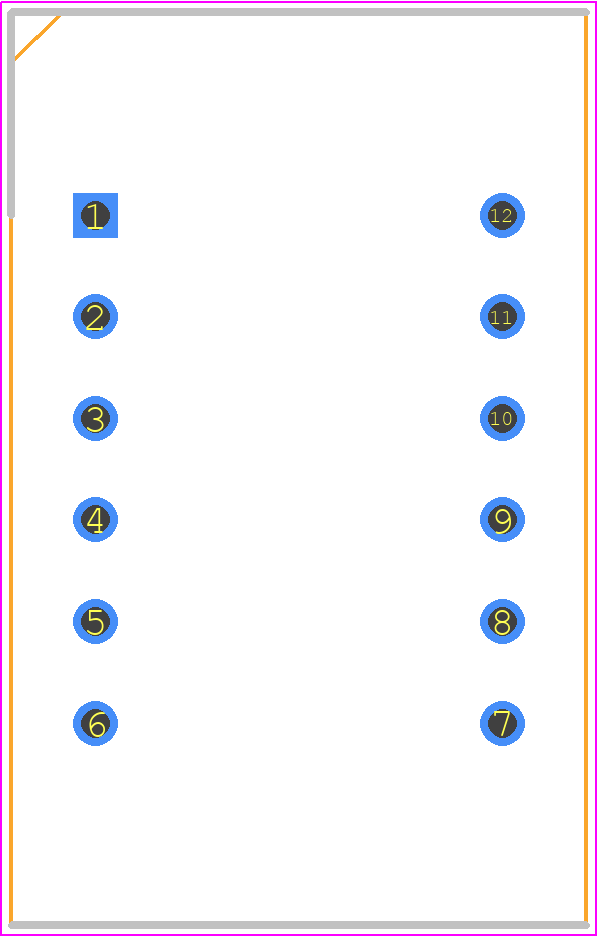

ELT-315SYGWA/S530-E2 - Everlight PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 12-DIP (0.400", 10.16mm)
click to zoom

ELT-315SYGWA/S530-E2 Details

  • Manufacturer Part Number:

    ELT-315SYGWA/S530-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Color:

    SUPER YELLOW GREEN

  • Configuration:

    COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT

  • Display Height:

    9.2 mm

  • Forward Current-Max:

    0.025 A

  • Number of Functions:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

ELT-315SYGWA/S530-E2 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for ELT-315SYGWA/S530-E2 is -40°C to 100°C, with a relative humidity of 60% or less.
  • Yes, ELT-315SYGWA/S530-E2 is suitable for outdoor use, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
  • The maximum allowable voltage for ELT-315SYGWA/S530-E2 is 3.5V, and it's recommended to operate within the specified voltage range to avoid damage or degradation.
  • When soldering ELT-315SYGWA/S530-E2, use a soldering iron with a temperature of 260°C or less, and avoid applying excessive force or pressure to the component. Also, ensure the soldering time is within the recommended 3 seconds.
  • Yes, ELT-315SYGWA/S530-E2 is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile and temperature to avoid damaging the component.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ELT-315SYGWA/S530-E2 Overview

Use the download button to access the ELT-315SYGWA/S530-E2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ELT-3, or try a keyword search, such as LED Displays
