Part Image

ELUMEETHQ8C22 - LITTELFUSE

Description: Switch Push Button ON ON SPDT Square Plunger 0.25A 50VDC 3.5VA PC Pins Thru-Hole Automotive Tray

Download ELUMEETHQ8C22 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ELUMEETHQ8C22 - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

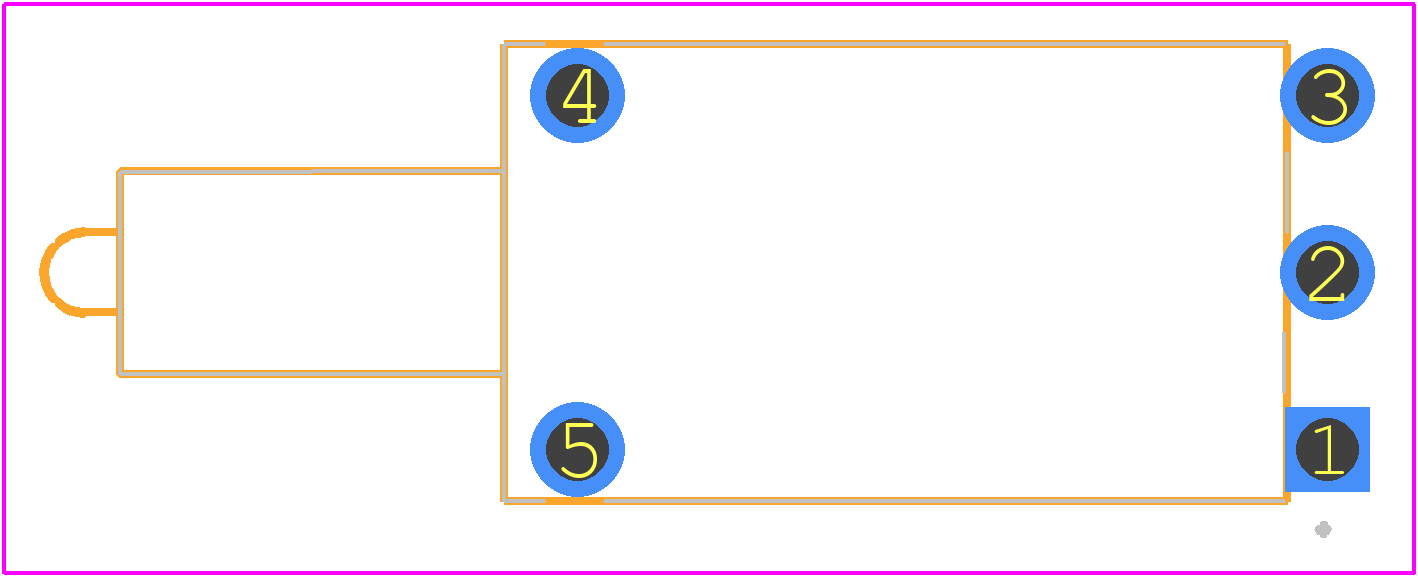

ELUMEETHQ8C22 - LITTELFUSE PCB footprint - Other - Other - ELUMEETHQ8C22-4
click to zoom

ELUMEETHQ8C22 Details

  • Manufacturer Part Number:

    ELUMEETHQ8C22

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    Littelfuse Inc

  • Switch Type:

    PUSHBUTTON SWITCH

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ELUMEETHQ8C22 Overview

Use the download button to access the ELUMEETHQ8C22 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ELUME, or try a keyword search, such as Pushbutton Switches
