- Part Number ELVH12100
- Manufacturer Amphenol
- Pin Count 12
- Part Category Connector
- Package Category Other

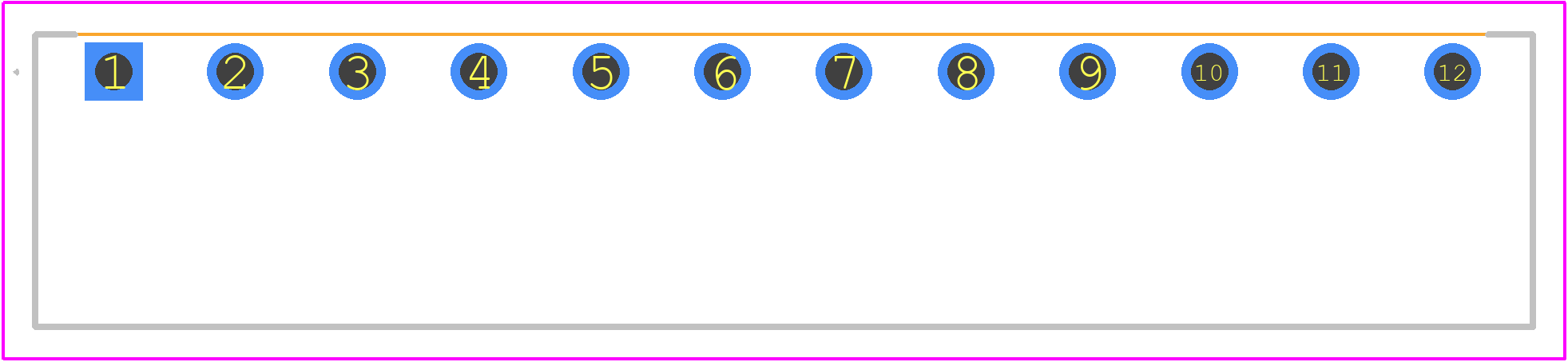

- Footprint Name Other - ELVH12100-5
- Released Date Sep 28, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ELVH12100 Details
-
Manufacturer Part Number:
ELVH12100
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Factory Lead Time:
6 Weeks
-
Manufacturer:
Amphenol Corporation
-
YTEOL:
6.77
-
Additional Feature:
PA, UL 94V-0
-
Fastening Method:
SOLDER
-
Mounting Type:
BOARD
ELVH12100 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Amphenol application note.
-
Yes, the ELVH12100 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration, as per IEC 60068-2-6.
-
Yes, the ELVH12100 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
-
The maximum operating temperature range for the ELVH12100 is -40°C to 125°C, as specified in the datasheet.
-
Yes, the ELVH12100 is designed to operate in humid environments, with a humidity rating of 95% RH at 40°C, as per IEC 60068-2-78.
