ELXS451VSN221MQ40S - Chemi-Con

Description: Nippon Chemi-Con 220μF 450 V dc Aluminium Electrolytic Capacitor, LXS Series 5000h 25.4 (Dia.) x 40mm

Download ELXS451VSN221MQ40S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ELXS451VSN221MQ40S - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

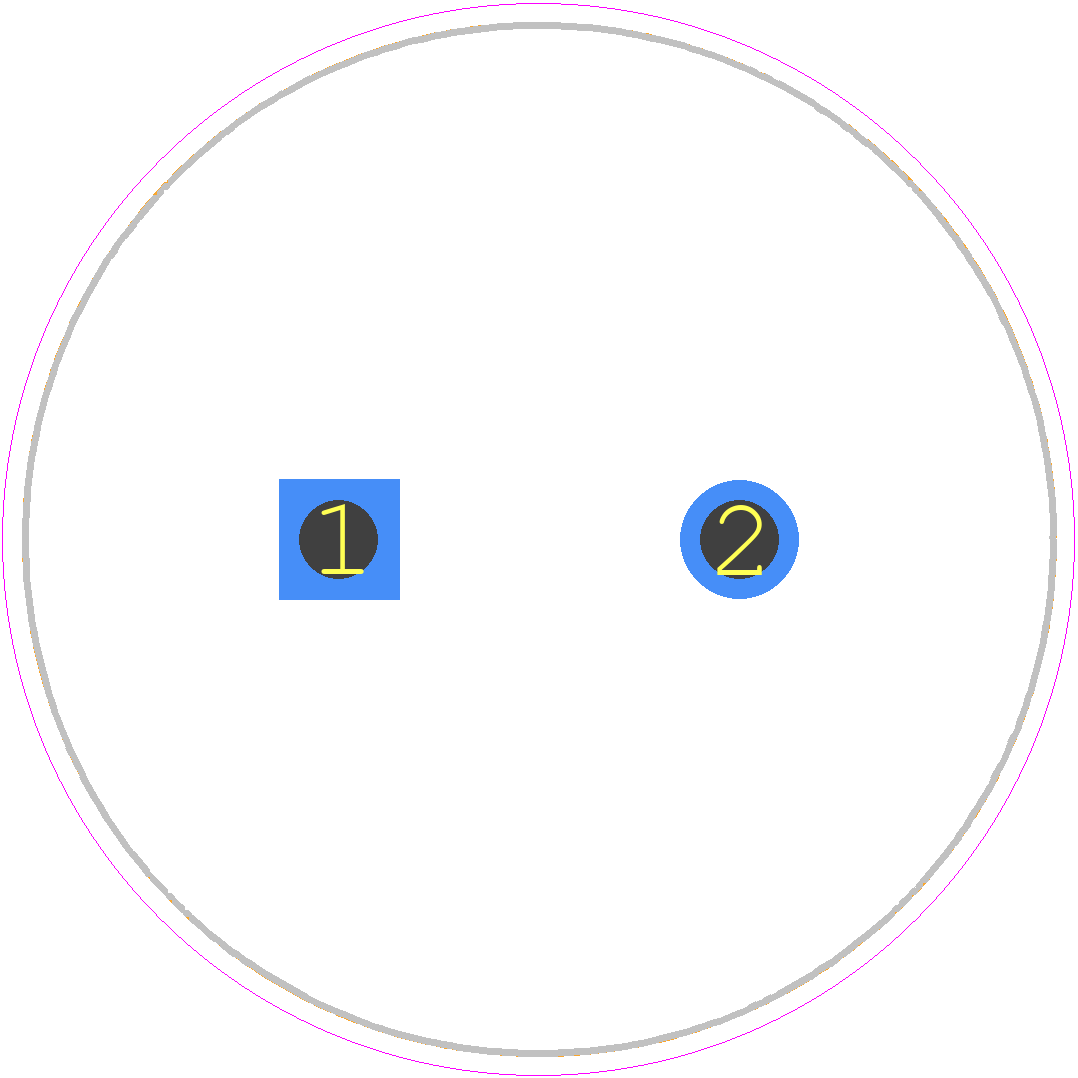

ELXS451VSN221MQ40S - Chemi-Con PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - ELXS451VSN221MQ40S
click to zoom
3D Models
ELXS451VSN221MQ40S - Chemi-Con - 3D model - Capacitor, Polarized Radial Diameter - ELXS451VSN221MQ40S
click to zoom

ELXS451VSN221MQ40S Details

  • Manufacturer Part Number:

    ELXS451VSN221MQ40S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25.4 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.9439 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1200 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

ELXS451VSN221MQ40S Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the soldering profile recommended by Chemi-Con to prevent damage to the capacitor.
  • Yes, the ELXS451VSN221MQ40S is designed to withstand vibrations up to 10Hz to 2000Hz, 10G acceleration. However, it's crucial to ensure proper mounting and secure the capacitor to prevent mechanical stress.
  • The ELXS451VSN221MQ40S is designed for high-frequency applications, with a self-resonant frequency of 1.5MHz. However, it's essential to consider the capacitor's impedance characteristics and ESR (Equivalent Series Resistance) when operating at high frequencies.
  • The ELXS451VSN221MQ40S has a maximum operating temperature of 125°C (257°F). While it can operate at high temperatures, it's essential to derate the capacitor's voltage and current ratings accordingly to ensure reliable operation.
  • It's recommended to store the ELXS451VSN221MQ40S in a dry, cool place with a temperature range of 5°C to 30°C (41°F to 86°F) and humidity below 70%. Avoid storing the capacitor in direct sunlight or near heat sources.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ELXS451VSN221MQ40S Overview

Use the download button to access the ELXS451VSN221MQ40S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ELXS4, or try a keyword search, such as Aluminum Electrolytic Capacitors
