The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the soldering profile recommended by Chemi-Con to prevent damage to the capacitor.
Yes, the ELXS451VSN221MR30S is designed to withstand vibrations up to 10Hz to 200Hz, 1.5mm double amplitude, according to IEC 60068-2-6. However, it's recommended to consult with Chemi-Con or perform additional testing to ensure the capacitor meets the specific vibration requirements of your application.
The ESR of the ELXS451VSN221MR30S capacitor increases as the temperature decreases. At -40°C, the ESR is approximately 1.5 times higher than at 20°C. Consult the datasheet or Chemi-Con's application notes for more information on ESR vs. temperature characteristics.
The ELXS451VSN221MR30S has a moisture sensitivity level of 3, which means it can withstand humid environments. However, it's recommended to follow proper storage and handling procedures to prevent moisture absorption. If your application requires operation in extremely humid conditions, consult with Chemi-Con or consider using a capacitor with a higher moisture resistance rating.
Yes, the ELXS451VSN221MR30S is suitable for use in DC-DC converters and switching power supplies due to its low ESR and high ripple current rating. However, ensure that the capacitor is properly sized and derated for the specific application, and follow Chemi-Con's guidelines for capacitor selection and use in switching power supplies.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ELXS451VSN221MR30S Overview

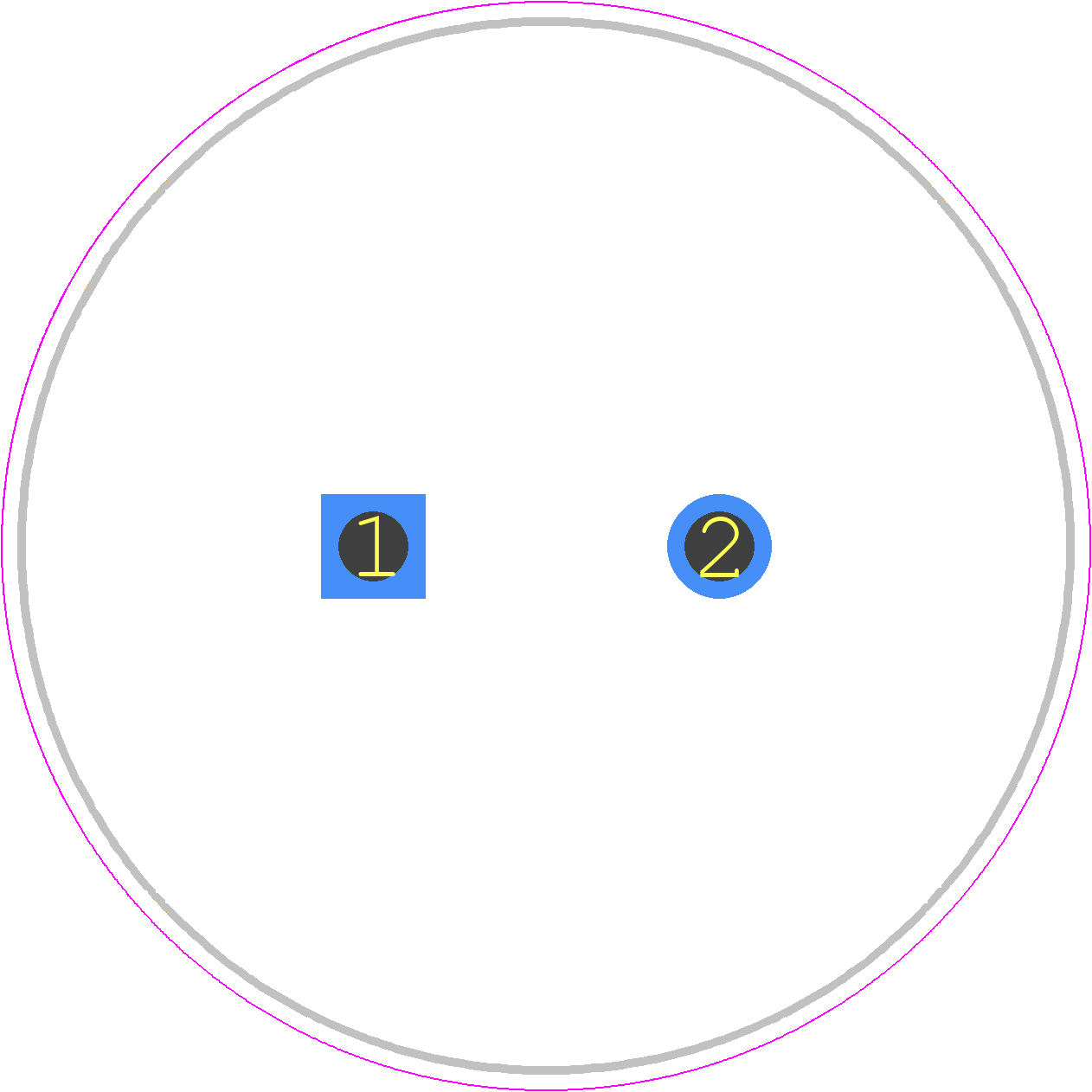

Use the download button to access the ELXS451VSN221MR30S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ELXS4,
or try a keyword search, such as Aluminum Electrolytic Capacitors
