EM6K1T2R - ROHM Semiconductor

Description: ROHM EM6K1T2R Dual N-channel MOSFET Transistor, 100 A, 30 V, 6-Pin EMT

Download EM6K1T2R Model

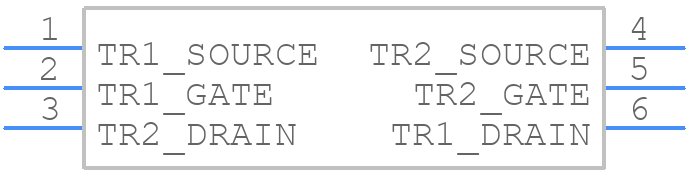

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EM6K1T2R - ROHM Semiconductor PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - EMX26T2R
click to zoom
3D Models
EM6K1T2R - ROHM Semiconductor  - 3D model - SO Transistor Flat Lead - EMX26T2R
click to zoom

EM6K1T2R Details

  • Manufacturer Part Number:

    EM6K1T2R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    EMT6, 6 PIN

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    0.1 A

  • Drain-source On Resistance-Max:

    8 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    150 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

EM6K1T2R Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the EM6K1T2R is 2.7V to 5.5V.
  • To ensure proper power-on and power-off, it is recommended to follow a power-up sequence of VCC first, then VREF, and power-down sequence of VREF first, then VCC.
  • The maximum allowable power dissipation for the EM6K1T2R is 500mW.
  • It is recommended to separate the analog and digital grounds, and connect them at a single point to prevent noise and interference.
  • It is recommended to follow a star-connection layout for the analog and digital signals, and to keep the signal traces as short as possible to minimize noise and interference.
