EM6M2T2R - ROHM Semiconductor

Description: 1.2V Drive Nch+Pch MOSFET

Download EM6M2T2R Model

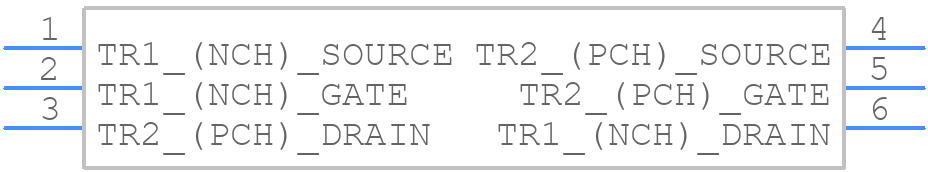

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EM6M2T2R - ROHM Semiconductor PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT-563 (EMT6)
click to zoom
3D Models
EM6M2T2R - ROHM Semiconductor  - 3D model - SO Transistor Flat Lead - SOT-563 (EMT6)
click to zoom

EM6M2T2R Details

  • Manufacturer Part Number:

    EM6M2T2R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6.5

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    0.2 A

  • Drain-source On Resistance-Max:

    1.4 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    0.15 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

EM6M2T2R Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the EM6M2T2R is 1.65V to 3.6V.
  • The power sequencing for the EM6M2T2R is not critical, but it is recommended to power up the VDD pin first, followed by the VDDQ pin.
  • The maximum clock frequency supported by the EM6M2T2R is 200 MHz.
  • A simple reset circuit can be implemented using a resistor and capacitor connected to the RESET pin. The recommended values are R = 1 kΩ and C = 10 nF.
  • The maximum current consumption of the EM6M2T2R is 150 mA.
