EM9304V01CS25B - EM MICROELECTRONIC

Description: OPTIMIZED BLUETOOTH 5.0 LOW ENERGY COMPANION

Download EM9304V01CS25B Model

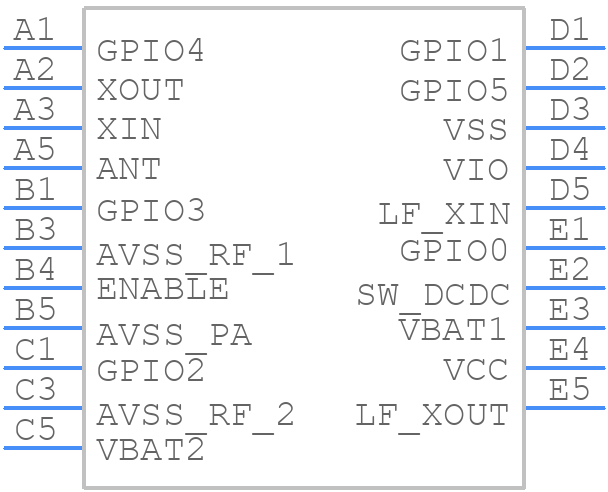

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EM9304V01CS25B - EM MICROELECTRONIC PCB footprint - Other - Other - WLCSP25
click to zoom

EM9304V01CS25B Details

  • Manufacturer Part Number:

    EM9304V01CS25B

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    OPTIMIZED BLUETOOTH 5.0 LOW-ENERGY COMPANION OR SOC

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    EM Microelectronic-Marin SA

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PBGA-B21

  • Length:

    2.34 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.621 mm

  • Supply Voltage-Nom:

    1.25 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.206 mm

EM9304V01CS25B Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the antenna away from noisy components and ensure a 50-ohm impedance matching for optimal performance.
  • Ensure good thermal design, use a heat sink if necessary, and avoid exposing the device to extreme temperatures during storage or operation.
  • Power up the device in the following sequence: VDD, then VBAT, and finally the reset signal (RST_N). Ensure a stable power supply and a clean reset signal.
  • Use a spectrum analyzer to measure the RF signal, check the antenna design and placement, and verify the PCB layout and component selection. Consult the datasheet and application notes for guidance.
  • Pay attention to the antenna design, PCB layout, power supply decoupling, and component selection (e.g., capacitors, resistors, and inductors) to ensure optimal performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EM9304V01CS25B Overview

Use the download button to access the EM9304V01CS25B schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like EM930, or try a keyword search, such as Other Telecom ICs
