SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Supply Current-Max:
2 mA
Supply Voltage-Max:
14 V
Supply Voltage-Min:
3.5 V
Supply Voltage-Nom:
12 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.04 µs
Turn-on Time:
0.04 µs
Width:
3 mm
EMB1412MY/NOPB Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal shutdown or warning mechanisms if necessary.
Using a different input capacitor value than recommended may affect the device's stability, output voltage regulation, and transient response. It's essential to follow the recommended input capacitor value and type to ensure optimal performance and stability. If a different value is required, consult with Texas Instruments' support team or perform thorough simulations and testing to validate the design.
The EMB1412MY/NOPB is designed for low-to-moderate current applications. For high-current output designs, consider using a different device or adding external components, such as a current sense resistor and a power transistor, to handle the increased current. Consult with Texas Instruments' support team or perform thorough simulations and testing to validate the design.
To troubleshoot issues with the device's output voltage regulation, start by verifying the input voltage, output voltage, and load current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Consult the datasheet and application notes for troubleshooting guidelines, and consider using a scope or multimeter to measure the output voltage and current waveforms.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EMB1412MY/NOPB Overview

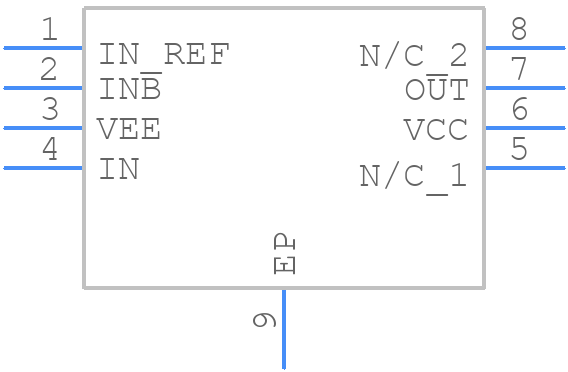

Use the download button to access the EMB1412MY/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMB14,
or try a keyword search, such as MOSFET Drivers
