Part Image

EMC-03 - CUI Inc.

Description: Power Line Filters Ac-Dc EMC Filter, 1.5 A, 85~305 Vac Input Range, PCB Mount

Download EMC-03 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

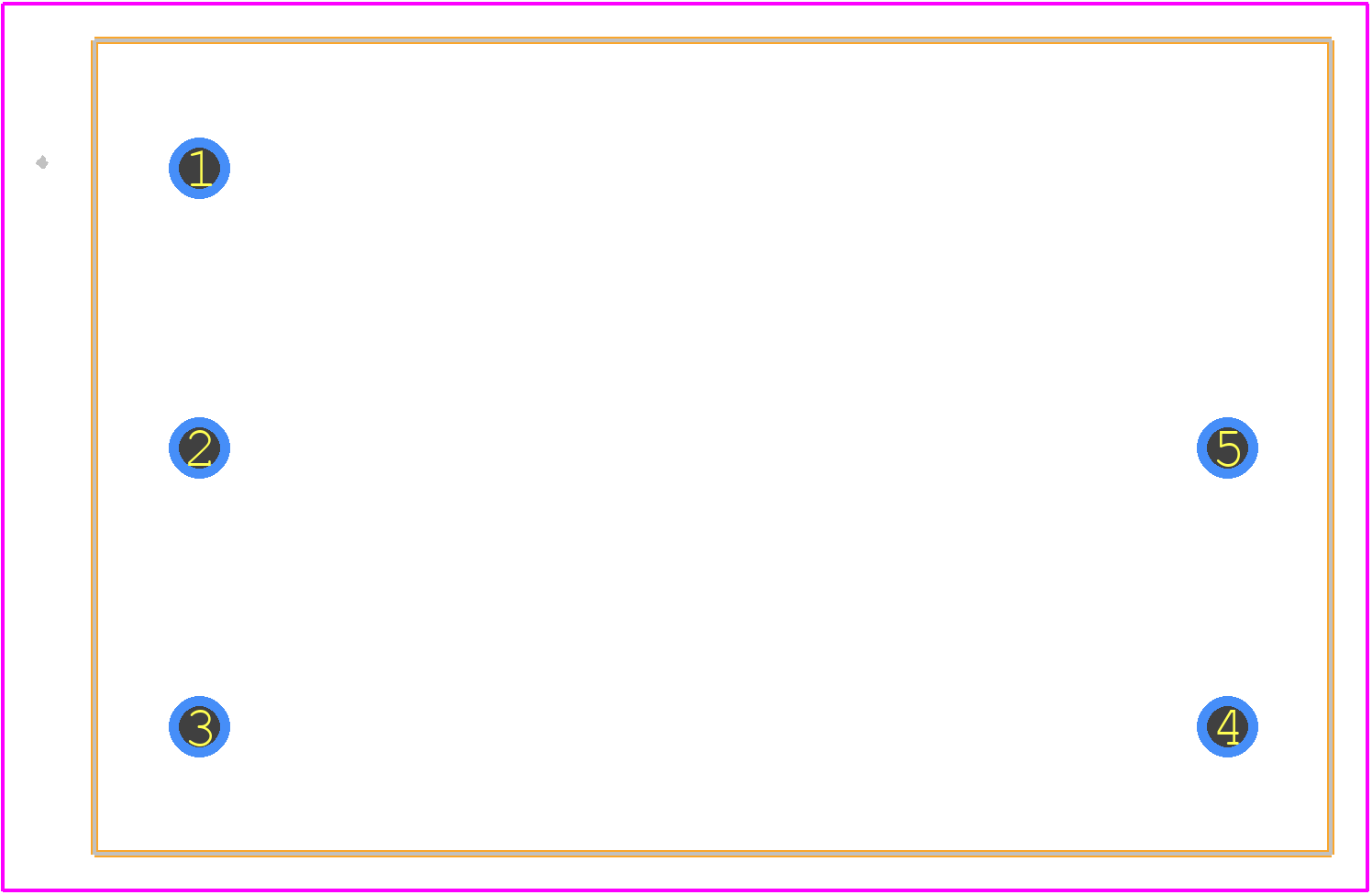

EMC-03 - CUI Inc. PCB footprint - Other - Other - EMC-03-1
click to zoom
3D Models
EMC-03 - CUI Inc.  - 3D model - Other - EMC-03-1
click to zoom

EMC-03 Details

  • Manufacturer Part Number:

    EMC-03

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Manufacturer:

    CUI Inc

  • YTEOL:

    7

  • Approvals:

    UL; EN; IEC

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Height:

    18 mm

  • Length:

    33.7 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Current:

    0.3 A

  • Rated Voltage:

    305 V

  • Width:

    22.2 mm

EMC-03 Frequently Asked Questions (FAQs)

  • CUI recommends a multi-layer PCB with a solid ground plane, and placing the EMC-03 near the noise source. Additionally, keep the input and output traces separate and as short as possible to minimize radiation.
  • CUI recommends using a soldering iron with a temperature of 250°C to 270°C, and applying a small amount of solder paste to the pads. Ensure the component is properly aligned and the solder joints are clean and free of oxidation.
  • The EMC-03 is rated for operation from -40°C to 85°C, but derating may be necessary for high-temperature applications. Consult the datasheet for specific derating guidelines.
  • Yes, the EMC-03 is designed to withstand vibrations up to 10G peak acceleration, but it's essential to ensure the component is properly secured to the PCB and the PCB is mounted securely to the chassis.
  • Start by verifying the EMC-03 is properly installed and soldered. Check the PCB layout for any noise coupling paths and ensure the input and output filters are properly terminated. Use an oscilloscope to measure the noise levels and identify the frequency range of the EMI.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMC-03 Overview

Use the download button to access the EMC-03 schematic symbol, PCB footprint, and 3D model.
