EMD3FHAT2R - ROHM Semiconductor

Description: Bipolar Transistors - Pre-Biased TRANS

Download EMD3FHAT2R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

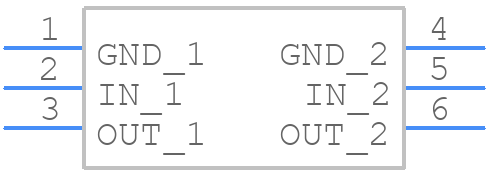

EMD3FHAT2R - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
EMD3FHAT2R - ROHM Semiconductor PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - EMT6
click to zoom
3D Models
EMD3FHAT2R - ROHM Semiconductor - 3D model - SO Transistor Flat Lead - EMT6
click to zoom

EMD3FHAT2R Details

  • Manufacturer Part Number:

    EMD3FHAT2R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-107C, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Additional Feature:

    BUILT IN BAIS RESISTOR RATIO IS 1

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • JESD-30 Code:

    R-PDSO-F6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    0.15 W

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz
