EMH4T2R - ROHM Semiconductor

Description: NPN+NPN, SOT-563, Dual Digital Transistor (Bias Resistor Built-in Transistor)

Download EMH4T2R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

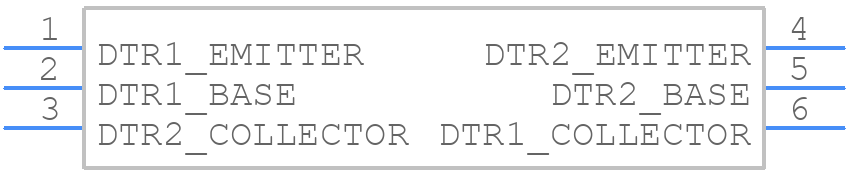

EMH4T2R - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
EMH4T2R - ROHM Semiconductor PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT-563 (EMT6)
click to zoom
3D Models
EMH4T2R - ROHM Semiconductor - 3D model - SO Transistor Flat Lead - SOT-563 (EMT6)
click to zoom

EMH4T2R Details

  • Manufacturer Part Number:

    EMH4T2R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-107

  • Package Description:

    ROHS COMPLIANT, EMT5, 5 PIN

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    100

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    0.15 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

EMH4T2R Frequently Asked Questions (FAQs)

  • ROHM recommends a 4-layer PCB with a solid ground plane and a separate power plane for the EMH4T2R. The device should be placed near the power source, and the input and output traces should be kept short and away from noise sources.
  • To ensure stability, ROHM recommends using a minimum output capacitance of 10uF, and a maximum equivalent series resistance (ESR) of 1 ohm. Additionally, the output voltage should be decoupled with a 1uF ceramic capacitor.
  • Although the datasheet specifies a maximum input voltage of 5.5V, ROHM recommends limiting the input voltage to 5V to ensure reliable operation and to prevent damage to the device.
  • Yes, EMH4T2R is rated for operation up to 125°C. However, ROHM recommends derating the output current and voltage at high temperatures to ensure reliable operation and to prevent thermal shutdown.
  • ROHM recommends checking the input voltage, output current, and PCB layout for any issues. Additionally, using an oscilloscope to monitor the output voltage and current can help identify any instability or noise issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMH4T2R Overview

Use the download button to access the EMH4T2R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMH4T, or try a keyword search, such as Small Signal Bipolar Transistors
