ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for the device. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. ROHM also recommends using a thermistor or thermocouple to monitor the temperature and implement thermal protection if necessary.
Although the datasheet specifies the recommended operating voltage range, it's essential to note that the maximum allowed voltage on the input pins is 6V. Exceeding this voltage may cause damage to the device or affect its reliability.
ROHM recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input lines to protect the EMH52T2R from electrostatic discharge. Additionally, follow proper handling and storage procedures to prevent ESD damage during manufacturing and assembly.
ROHM recommends storing the EMH52T2R in a dry, cool place, away from direct sunlight and moisture. The storage temperature should be between -40°C to 125°C, and the humidity should be below 60%. Avoid storing the devices in environments with high temperatures, humidity, or exposure to chemicals.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EMH52T2R Overview

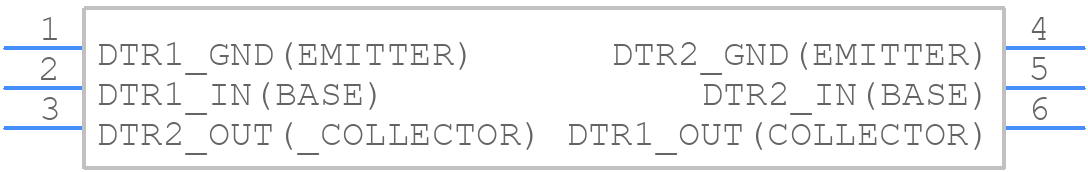

Use the download button to access the EMH52T2R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMH52,
or try a keyword search, such as Small Signal Bipolar Transistors
