EMI7206MUTAG - onsemi

Description: LC (Pi) EMI Filter 3rd Order Low Pass 6 Channel L = 17nH, C = 12pF 30 mA 12-UFDFN Exposed Pad

Download EMI7206MUTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

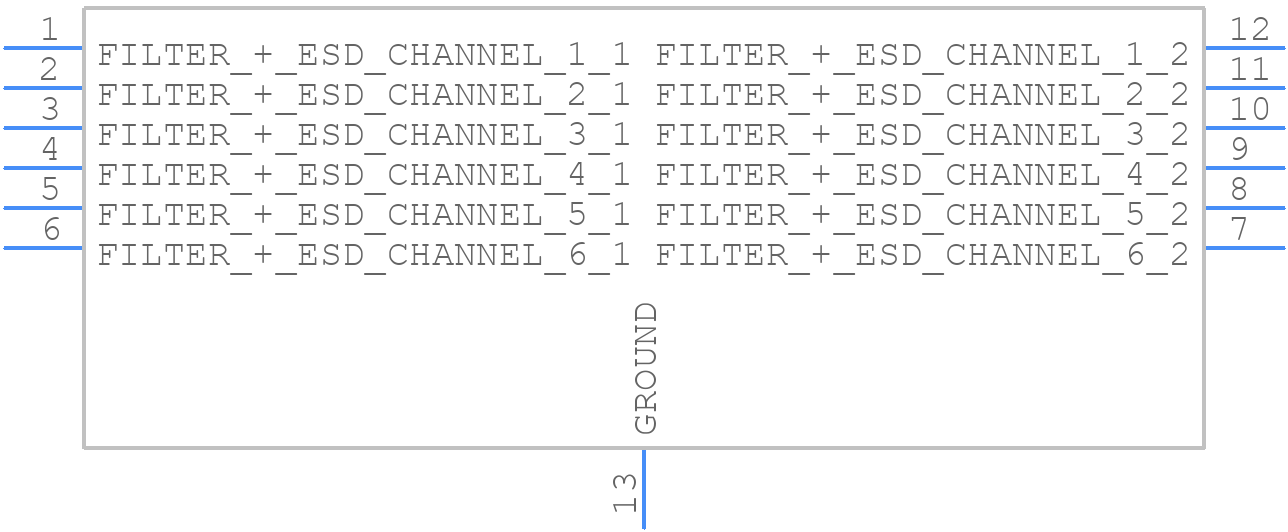

EMI7206MUTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
EMI7206MUTAG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - UDFN12, 2.5x1.35, 0.4P
click to zoom
3D Models
EMI7206MUTAG - onsemi - 3D model - Small Outline No-lead - UDFN12, 2.5x1.35, 0.4P
click to zoom

EMI7206MUTAG Details

  • Manufacturer Part Number:

    EMI7206MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN12, 2.5x1.35, 0.4P

  • Package Description:

    UDFN PACKAGE-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    517BD

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.19

  • Capacitance:

    24.2 µF

  • DC Resistance-Max:

    10 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.55 mm

  • Inductance:

    0.017 µH

  • JESD-609 Code:

    e3

  • Length:

    2.5 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    6

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    0.001 A

  • Rated Voltage:

    2.5 V

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Width:

    1.35 mm

EMI7206MUTAG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the EMI7206MUTAG close to the noise source and use a shielded enclosure to minimize radiation.
  • The value of Cfilt depends on the frequency range of interest and the desired attenuation. A good starting point is 10nF to 100nF. Use the onsemi application note AN1985 for more guidance.
  • The EMI7206MUTAG is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures. Consult the datasheet for more information.
  • Yes, the EMI7206MUTAG is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, additional testing and validation may be required for specific use cases.
  • Follow the recommended soldering profile and handling procedures outlined in the onsemi application note AN1985. Use a reflow oven with a peak temperature of 260°C and a dwell time of 30-60 seconds.
