EMIF08-VID01F2 - STMicroelectronics

Description: 8-line EMI filter and ESD protection for display interfaces

Download EMIF08-VID01F2 Model

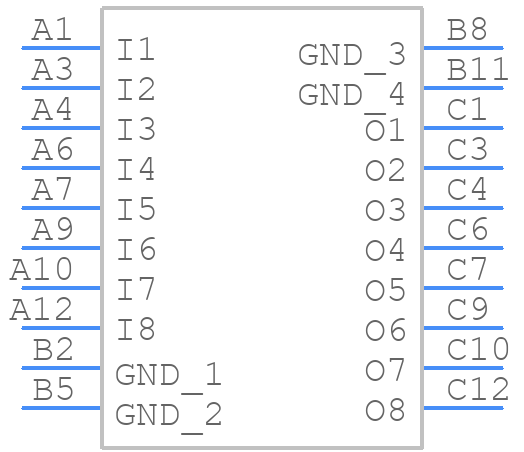

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EMIF08-VID01F2 - STMicroelectronics PCB footprint - Other - Other - Flip Chip
click to zoom
3D Models
EMIF08-VID01F2 - STMicroelectronics  - 3D model - Other - Flip Chip
click to zoom

EMIF08-VID01F2 Details

  • Manufacturer Part Number:

    EMIF08-VID01F2

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE, FLIP CHIP-22

  • Country Of Origin:

    France

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Approvals:

    IEC

  • Capacitance:

    16 µF

  • DC Resistance-Max:

    120 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.65 mm

  • Insulation Resistance-Min:

    120 MΩ

  • Length:

    3.92 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    8

  • Number of Terminals:

    22

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR

  • Width:

    1.29 mm

EMIF08-VID01F2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output capacitors should be placed as close as possible to the device.
  • The device should be powered on and off slowly (typically 1-10 ms) to prevent voltage spikes and ensure proper operation. A soft-start circuit can be used to control the power-on sequence.
  • The maximum allowed voltage on the input pins is 6.5V, exceeding which may cause permanent damage to the device.
  • The device should be mounted on a heat sink or a metal pad on the PCB to dissipate heat. The thermal pad on the bottom of the package should be connected to a solid ground plane to improve heat dissipation.
  • A 10-22 μF X5R or X7R ceramic capacitor is recommended for the input capacitor, placed as close as possible to the device.
