EMMC16G-W525 - Kingston Technology

Description: Embedded Multi-Media Card, BGA-153

Download EMMC16G-W525 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EMMC16G-W525 model

Email notifications will be applied after download.

Send part feedback

Symbol

EMMC16G-W525 - Kingston Technology - PCB symbol

PCB Footprints

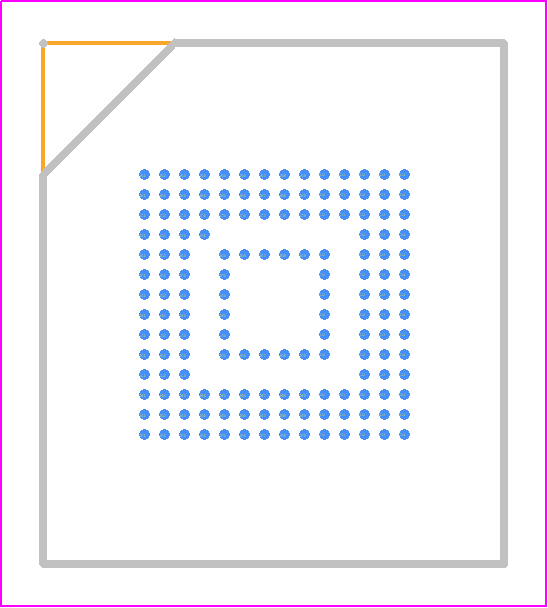

EMMC16G-W525 - Kingston Technology PCB footprint - BGA - BGA - FBGA153

3D Models

EMMC16G-W525 - Kingston Technology - 3D model - BGA - FBGA153

Datasheet Download Datasheet
Stock & Prices Price & Stock for EMMC16G-W525
Part Number EMMC16G-W525
Manufacturer Kingston Technology
Pin Count 153
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - FBGA153
Released Date Aug 24, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EMMC16G-W525 Details

Manufacturer Part Number:
EMMC16G-W525
Part Life Cycle Code:
Obsolete
Package Description:
PACKAGE
ECCN Code:
EAR99
HTS Code:
8542.32.00.51
Factory Lead Time:
6 Weeks
Manufacturer:
Kingston Technology Company
YTEOL:
0
JESD-30 Code:
R-XXSS-X
Memory Density:
137438953472 bit
Memory IC Type:
eMMC
Memory Width:
8
Number of Functions:
1
Number of Words:
17179869184 words
Number of Words Code:
16000000000
Operating Mode:
ASYNCHRONOUS
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Organization:
16GX8
Package Body Material:
UNSPECIFIED
Package Shape:
RECTANGULAR
Package Style:
SPECIAL SHAPE
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
UNSPECIFIED
Terminal Position:
UNSPECIFIED

EMMC16G-W525 Frequently Asked Questions (FAQs)

The operating temperature range of EMMC16G-W525 is -25°C to 85°C, and the storage temperature range is -40°C to 85°C.
Yes, EMMC16G-W525 is compliant with JEDEC MO-276 and eMMC 5.1 standards.
The typical power consumption of EMMC16G-W525 is 3.3V ± 0.3V, with a maximum current consumption of 200mA during read and write operations.
Yes, EMMC16G-W525 supports features like hardware-based boot protection, secure erase, and write protection to ensure data security.
EMMC16G-W525 supports up to 3,000 program/erase cycles per block, and up to 10,000 program/erase cycles per device.
