EMVE101ARA470MKE0S - Chemi-Con

Description: Aluminum Electrolytic Capacitors - SMD 100volts 47uF 12.5X13.5

Download EMVE101ARA470MKE0S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EMVE101ARA470MKE0S - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

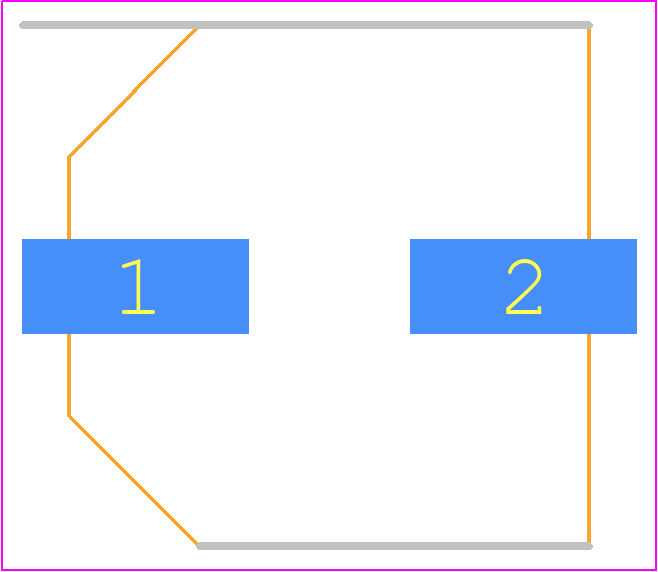

EMVE101ARA470MKE0S - Chemi-Con PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - ke0 pkg
click to zoom
3D Models
EMVE101ARA470MKE0S - Chemi-Con - 3D model - Capacitor Al Electrolytic - ke0 pkg
click to zoom

EMVE101ARA470MKE0S Details

  • Manufacturer Part Number:

    EMVE101ARA470MKE0S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Mainland China, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    7

  • Capacitance:

    47 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    12.5 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    13.5 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.141 mA

  • Length:

    13 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    250 mA

  • Size Code:

    5151

  • Surface Mount:

    YES

  • Tan Delta:

    0.1

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    13 mm

EMVE101ARA470MKE0S Frequently Asked Questions (FAQs)

  • Chemi-Con recommends a voltage derating of 80% or less for this capacitor to ensure reliable operation and prevent premature failure.
  • The ESR of the EMVE101ARA470MKE0S capacitor decreases with increasing frequency. According to Chemi-Con's application notes, the ESR at 100 kHz is approximately 1/3 of the ESR at 100 Hz.
  • The EMVE101ARA470MKE0S capacitor is rated for operation up to 105°C, but Chemi-Con recommends derating the voltage and current ratings for extended operation above 85°C to ensure reliability.
  • The EMVE101ARA470MKE0S capacitor has an MSL rating of 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking or other special handling.
  • Yes, the EMVE101ARA470MKE0S capacitor is designed to handle high ripple currents. However, it's essential to ensure that the capacitor's RMS current rating is not exceeded to prevent overheating and premature failure.
