EMZA250ADA471MJA0G - Chemi-Con

Description: Aluminum Electrolytic Capacitors - SMD 470uF 25 Volt

Download EMZA250ADA471MJA0G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EMZA250ADA471MJA0G - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

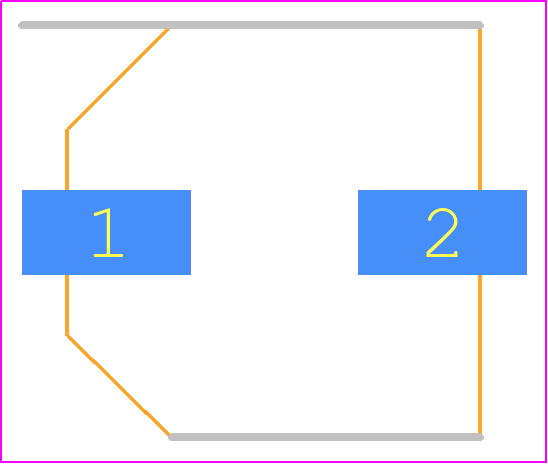

EMZA250ADA471MJA0G - Chemi-Con PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - MZA (JA0)
click to zoom
3D Models
EMZA250ADA471MJA0G - Chemi-Con - 3D model - Capacitor Al Electrolytic - MZA (JA0)
click to zoom

EMZA250ADA471MJA0G Details

  • Manufacturer Part Number:

    EMZA250ADA471MJA0G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    0

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    10 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.1175 mA

  • Length:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    850 mA

  • Size Code:

    4141

  • Surface Mount:

    YES

  • Tan Delta:

    0.14

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Shape:

    FLAT

  • Width:

    10.3 mm

EMZA250ADA471MJA0G Frequently Asked Questions (FAQs)

  • Chemi-Con recommends a voltage derating of 10-20% to ensure reliable operation and extend the lifespan of the capacitor.
  • The EMZA250ADA471MJA0G is designed to operate up to 125°C, but its capacitance and ESR may degrade at high temperatures. Consult Chemi-Con's application notes for specific guidance.
  • The EMZA250ADA471MJA0G is designed to meet the vibration and shock requirements of IEC 60068-2-6 and IEC 60068-2-27, respectively. However, it's essential to consult Chemi-Con's application notes and perform thorough testing to ensure the capacitor meets the specific requirements of your application.
  • Chemi-Con recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a cooling rate of 2-4°C/second. Consult the datasheet and Chemi-Con's application notes for more detailed guidance.
  • The EMZA250ADA471MJA0G is designed for general-purpose use, but it may not be suitable for high-current applications due to its limited ripple current rating. Consult Chemi-Con's application notes and perform thorough testing to ensure the capacitor meets the specific requirements of your application.
