EMZS350ARA471MHA0G - Chemi-Con

Description: Aluminum Electrolytic Capacitors - SMD 470uF 35V 20% AEC-Q200

Download EMZS350ARA471MHA0G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EMZS350ARA471MHA0G - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

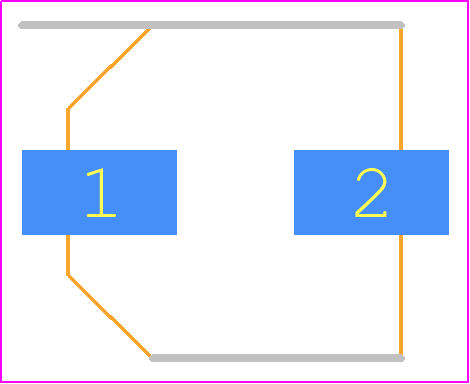

EMZS350ARA471MHA0G - Chemi-Con PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - EMZS350ARA471MHA0G-1
click to zoom
3D Models
EMZS350ARA471MHA0G - Chemi-Con - 3D model - Capacitor Al Electrolytic - EMZS350ARA471MHA0G-1
click to zoom

EMZS350ARA471MHA0G Details

  • Manufacturer Part Number:

    EMZS350ARA471MHA0G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    7

  • Additional Feature:

    ESR is MEASURED AT 100KHZ,

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    80 mΩ

  • Height:

    10 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.1645 mA

  • Length:

    8.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    425 mA

  • Size Code:

    3333

  • Surface Mount:

    YES

  • Tan Delta:

    0.12

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm

EMZS350ARA471MHA0G Frequently Asked Questions (FAQs)

  • The recommended PCB land pattern for the EMZS350ARA471MHA0G can be found in the Chemi-Con application note 'Recommended PCB Land Pattern for Aluminum Electrolytic Capacitors'. It is essential to follow this pattern to ensure proper mounting and to prevent damage to the capacitor.
  • To prevent damage, handle the capacitor by the body, not by the leads. Avoid bending or twisting the leads, and do not apply excessive force or pressure to the capacitor. It is also recommended to use a soldering iron with a temperature below 350°C and to avoid applying soldering flux to the capacitor.
  • The derating curve for the EMZS350ARA471MHA0G can be found in the Chemi-Con datasheet or in the application note 'Derating Curve for Aluminum Electrolytic Capacitors'. The curve provides guidance on how to derate the capacitor's voltage and ripple current ratings based on the operating temperature.
  • The EMZS350ARA471MHA0G is designed to withstand moderate vibration levels. However, if the application involves high-vibration environments, it is recommended to consult with Chemi-Con or to consider using a capacitor specifically designed for high-vibration applications.
  • The ESR of the EMZS350ARA471MHA0G is not explicitly stated in the datasheet. However, it can be calculated using the impedance values provided in the datasheet. Alternatively, you can contact Chemi-Con directly for ESR values or consult with their application engineers.
