EN11-VSB1AF15 - TT Electronics

Description: Rotary Encoder Mechanical 20 Quadrature (Incremental) Right Angle PCB, Through Hole -10°C to +70°C ,3 Ohms, max,10mA

Download EN11-VSB1AF15 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EN11-VSB1AF15 model

Email notifications will be applied after download.

Send part feedback

Symbol

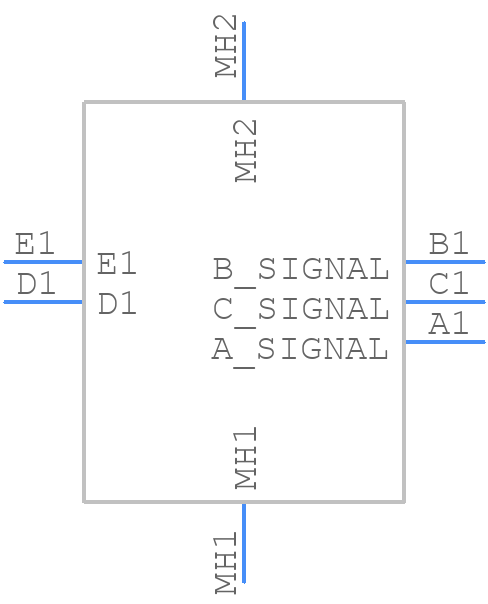

EN11-VSB1AF15 - TT Electronics - PCB symbol

PCB Footprints

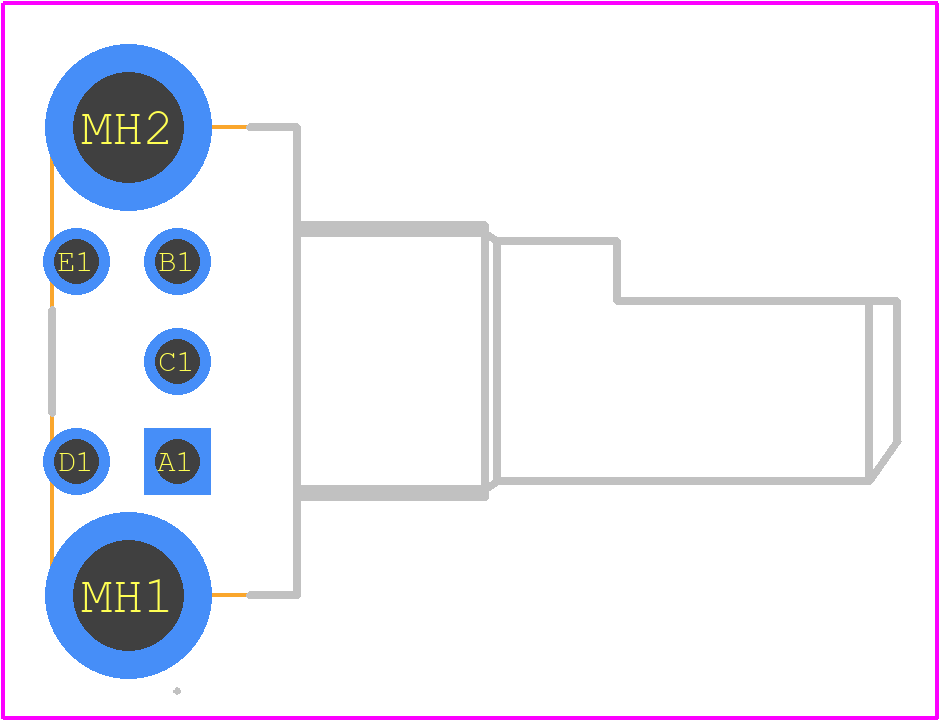

EN11-VSB1AF15 - TT Electronics PCB footprint - Other - Other - EN11-VSB1AF15-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for EN11-VSB1AF15
Part Number EN11-VSB1AF15
Manufacturer TT Electronics
Pin Count 7
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - EN11-VSB1AF15-1
Released Date Jul 7, 2025
Last Modified Date Jul 8, 2025 10:28 PM UTC
Pinout / Pin List Click Here (Member Only)

EN11-VSB1AF15 Details

Manufacturer Part Number:
EN11-VSB1AF15
Manufacturer:
TT Electronics plc

Trust Checks

Community Provided

System Verified

Community Approved

EN11-VSB1AF15 Overview

Use the download button to access the EN11-VSB1AF15 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EN11-, or try a keyword search, such as Rotary Switches
