ENC28J60/SO - Microchip

Description: Ethernet ICs 8 KB RAM MAC&PHY Ethernet Controller

Download ENC28J60/SO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

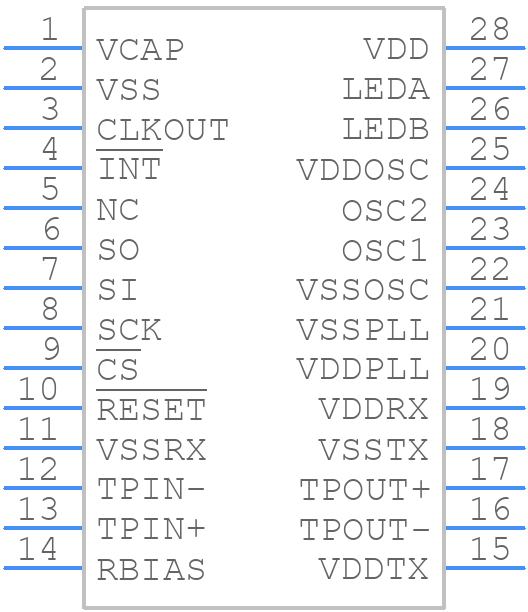

ENC28J60/SO - Microchip - PCB symbol
click to zoom
PCB Footprints

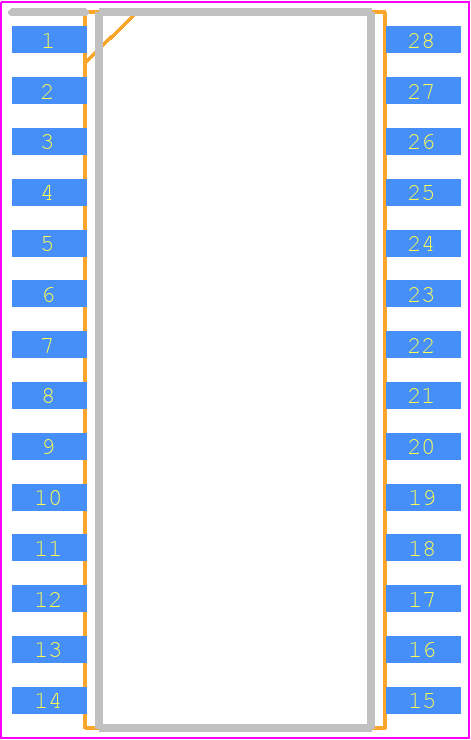

ENC28J60/SO - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (SO)28 Lead 7.5mm Body [SOIC]
click to zoom
3D Models
ENC28J60/SO - Microchip - 3D model - Small Outline Packages - (SO)28 Lead 7.5mm Body [SOIC]
click to zoom

ENC28J60/SO Details

  • Manufacturer Part Number:

    ENC28J60/SO

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    SOIC-28

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0.4

  • Boundary Scan:

    NO

  • Bus Compatibility:

    SPI

  • Clock Frequency-Max:

    25 MHz

  • Communication Protocol:

    SYNC, BIT, BYTE, ETHERNET

  • Data Transfer Rate-Max:

    1.25 MBps

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    17.9 mm

  • Low Power Mode:

    YES

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    28

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • RAM (words):

    8192

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    180 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.1 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, LAN

ENC28J60/SO Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the ENC28J60 is 25 MHz. This frequency is used to generate the internal clock signals for the device.
  • The ENC28J60 can be configured for a specific PHY mode by setting the appropriate bits in the PHYCR register (Register 0x00). For example, to configure the device for 10BASE-T mode, set bits 2-0 of the PHYCR register to 0b010.
  • The CLKOUT pin on the ENC28J60 provides a 25 MHz clock output that can be used as a reference clock for other devices on the board. This pin can be enabled or disabled by setting the CLKOE bit in the ECON1 register (Register 0x17).
  • The ENC28J60 generates interrupts on packet reception and transmission through the INT pin. To handle these interrupts, the microcontroller should read the EIR register (Register 0x1C) to determine the cause of the interrupt, and then clear the interrupt by writing to the EIR register.
  • The ENC28J60 supports cable lengths up to 100 meters for 10BASE-T and 100BASE-TX modes, and up to 200 meters for 1000BASE-T mode.
