Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize signal loss, and reduce electromagnetic interference (EMI).
The ENW89823A2KF has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to implement proper thermal management techniques, such as using thermal vias, heat sinks, or thermal interface materials. Additionally, ensure good airflow and avoid blocking the airflow around the component.
Panasonic recommends following the J-STD-020D.1 standard for soldering conditions. The recommended soldering temperature is between 240°C to 260°C, with a maximum soldering time of 5 seconds. It's also essential to use a soldering iron with a temperature control and to avoid applying excessive force or pressure during soldering.
To troubleshoot issues, start by verifying the component's pinout and connections. Check for any signs of physical damage, overheating, or soldering defects. Use oscilloscopes or logic analyzers to monitor signal waveforms and identify any anomalies. Consult Panasonic's application notes and technical support resources for guidance on specific issues.
The ENW89823A2KF is a high-frequency component, and EMI shielding and filtering are crucial to ensure reliable operation. Panasonic recommends using EMI shielding materials, such as copper foil or metal cans, to enclose the component. Additionally, implement filtering techniques, such as using ferrite beads or LC filters, to reduce electromagnetic radiation and noise.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ENW89823A2KF Overview

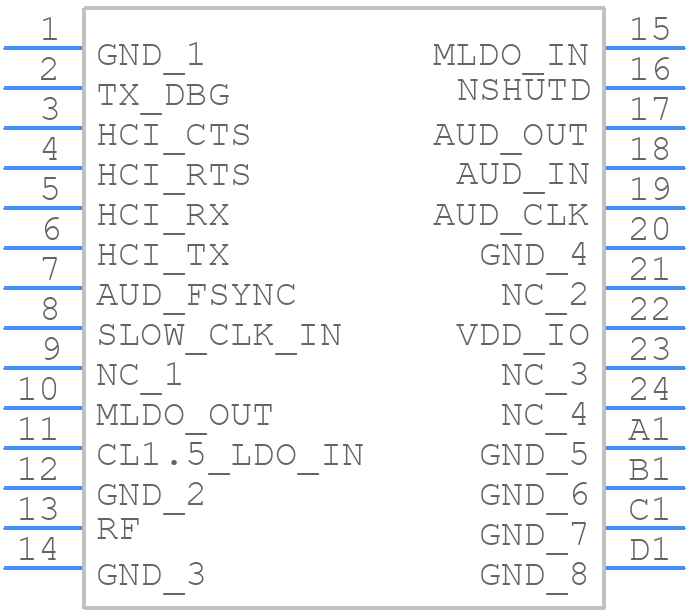

Use the download button to access the ENW89823A2KF schematic symbol, PCB footprint, and 3D model.
