Part Image

EP1C6Q240C8 - Intel

Description: IC FPGA 185 I/O 240QFP

Download EP1C6Q240C8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

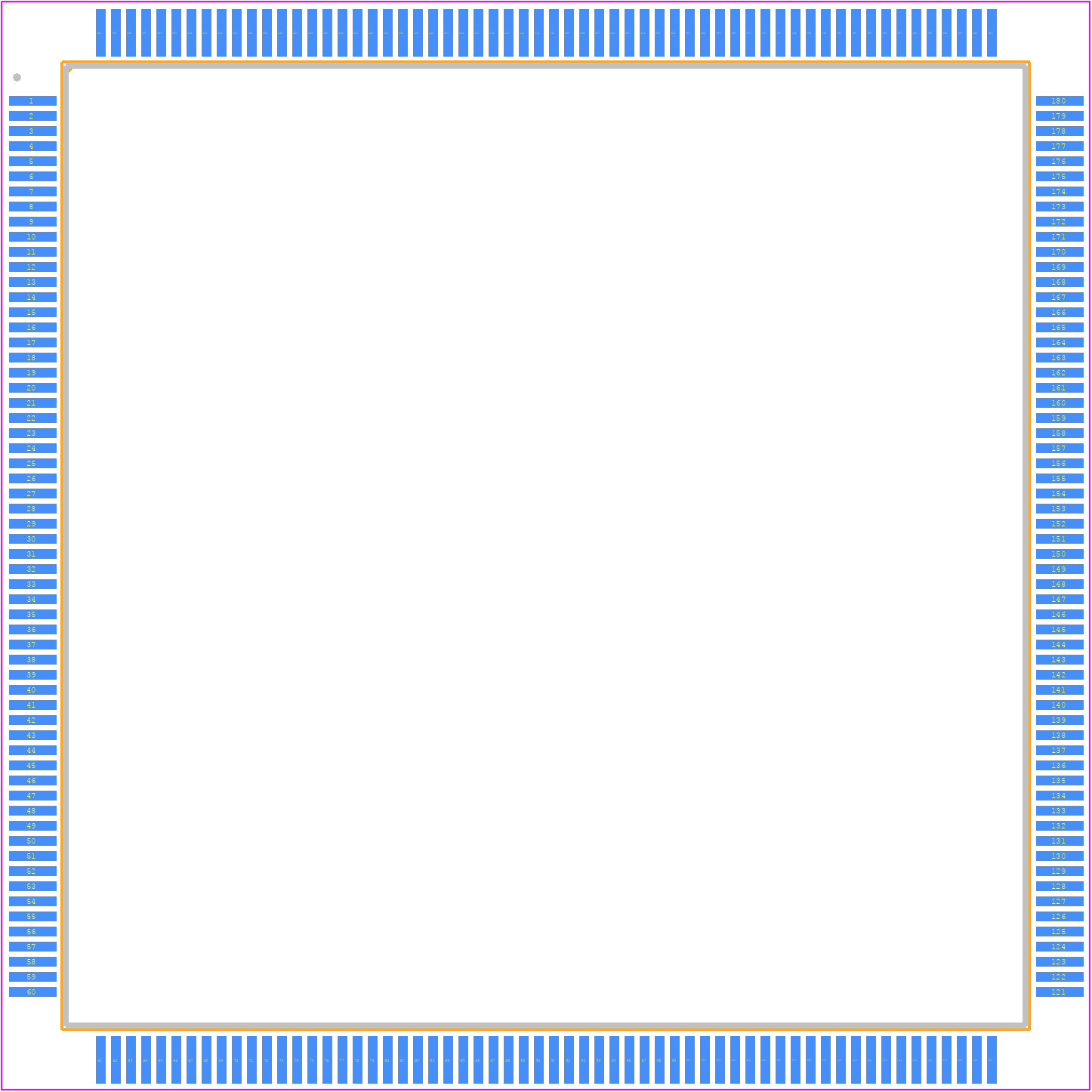

EP1C6Q240C8 - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - PQFP 240
click to zoom
3D Models
EP1C6Q240C8 - Intel  - 3D model - Quad Flat Packages - PQFP 240
click to zoom

EP1C6Q240C8 Details

  • Manufacturer Part Number:

    EP1C6Q240C8

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFP-240

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    275 MHz

  • JESD-30 Code:

    S-PQFP-G240

  • JESD-609 Code:

    e0

  • Length:

    32 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    598

  • Number of Inputs:

    185

  • Number of Logic Cells:

    5980

  • Number of Outputs:

    185

  • Number of Terminals:

    240

  • Operating Temperature-Max:

    85 °C

  • Organization:

    598 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP240,1.3SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.1 mm

  • Supply Voltage-Max:

    1.575 V

  • Supply Voltage-Min:

    1.425 V

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    32 mm

EP1C6Q240C8 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EP1C6Q240C8 is -40°C to 100°C (industrial grade) and -40°C to 85°C (commercial grade).
  • To implement a clock domain crossing (CDC) in the EP1C6Q240C8, use a synchronizer circuit or a FIFO-based CDC to ensure data integrity and prevent metastability issues.
  • The maximum frequency supported by the EP1C6Q240C8 is 250 MHz, but it depends on the specific application and design requirements.
  • To optimize power consumption in the EP1C6Q240C8, use power-aware design techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
  • The maximum current draw of the EP1C6Q240C8 is 1.5 A, but it depends on the specific application and design requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EP1C6Q240C8 Overview

Use the download button to access the EP1C6Q240C8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP1C6, or try a keyword search, such as Field Programmable Gate Arrays

Parts related to EP1C6Q240C8

Showing 0 results

EP1C6Q240C8 Alternates

Showing results

Image Part Number Model
Part Image EP1C6Q240I8ES Altera Corporation

Field Programmable Gate Array, 5980 CLBs, 275MHz, PQFP240

Part Image EP1C6Q240C8ES Altera Corporation

Field Programmable Gate Array, 5980 CLBs, 275MHz, PQFP240

Part Image EP1C6Q240C8N Intel Corporation

Field Programmable Gate Array, 598 CLBS, 275MHz, 5980-Cell, PQFP240

Part Image EP1C6Q240I8ES Intel Corporation

Field Programmable Gate Array, 5980 CLBs, 275MHz, PQFP240
