EP1S40F1508C6 - Intel

Description: IC FPGA 822 I/O 1508FBGA

Download EP1S40F1508C6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

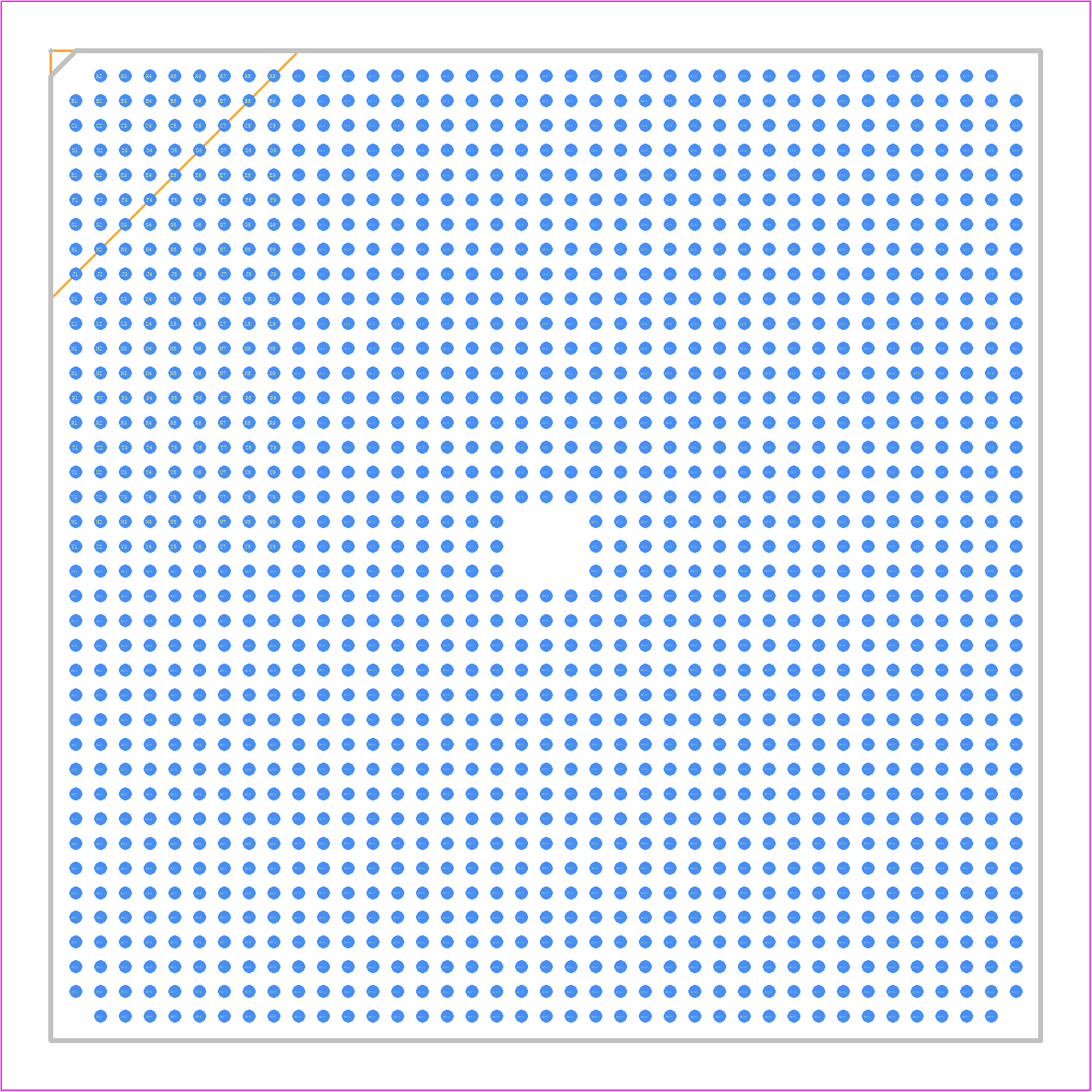

EP1S40F1508C6 - Intel PCB footprint - BGA - BGA - 1508-Pin FineLine Ball-Grid Array (FBGA), Option 1—Flip Chip
click to zoom
3D Models
EP1S40F1508C6 - Intel  - 3D model - BGA - 1508-Pin FineLine Ball-Grid Array (FBGA), Option 1—Flip Chip
click to zoom

EP1S40F1508C6 Details

  • Manufacturer Part Number:

    EP1S40F1508C6

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    40 X 40 MM, 1 MM PITCH, FBGA-1508

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B1508

  • JESD-609 Code:

    e0

  • Length:

    40 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    4697

  • Number of Inputs:

    822

  • Number of Logic Cells:

    41250

  • Number of Outputs:

    822

  • Number of Terminals:

    1508

  • Operating Temperature-Max:

    85 °C

  • Organization:

    4125 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA1508,39X39,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.5 mm

  • Supply Voltage-Max:

    1.575 V

  • Supply Voltage-Min:

    1.425 V

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    40 mm

EP1S40F1508C6 Frequently Asked Questions (FAQs)

  • The EP1S40F1508C6 has an industrial temperature range of -40°C to 100°C, but it can also be operated at a commercial temperature range of 0°C to 85°C with reduced performance.
  • Intel provides a clock tree synthesis tool called the 'Clock Tree Synthesis' feature in the Quartus II software, which helps to optimize clock tree implementation for the EP1S40F1508C6.
  • The maximum frequency achievable with the EP1S40F1508C6 depends on the specific design and implementation, but Intel claims a maximum clock frequency of up to 250 MHz for this device.
  • Intel recommends using the 'Signal Integrity Tool' in the Quartus II software to analyze and optimize signal integrity for high-speed designs on the EP1S40F1508C6.
  • No, the EP1S40F1508C6 is not a radiation-hardened device and is not suitable for use in high-radiation environments.
