EP1SGX40GF1020C5 - Intel

Description: IC FPGA 624 I/O 1020FBGA, Stratix GX

Download EP1SGX40GF1020C5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EP1SGX40GF1020C5 - Intel - PCB symbol
click to zoom
PCB Footprints

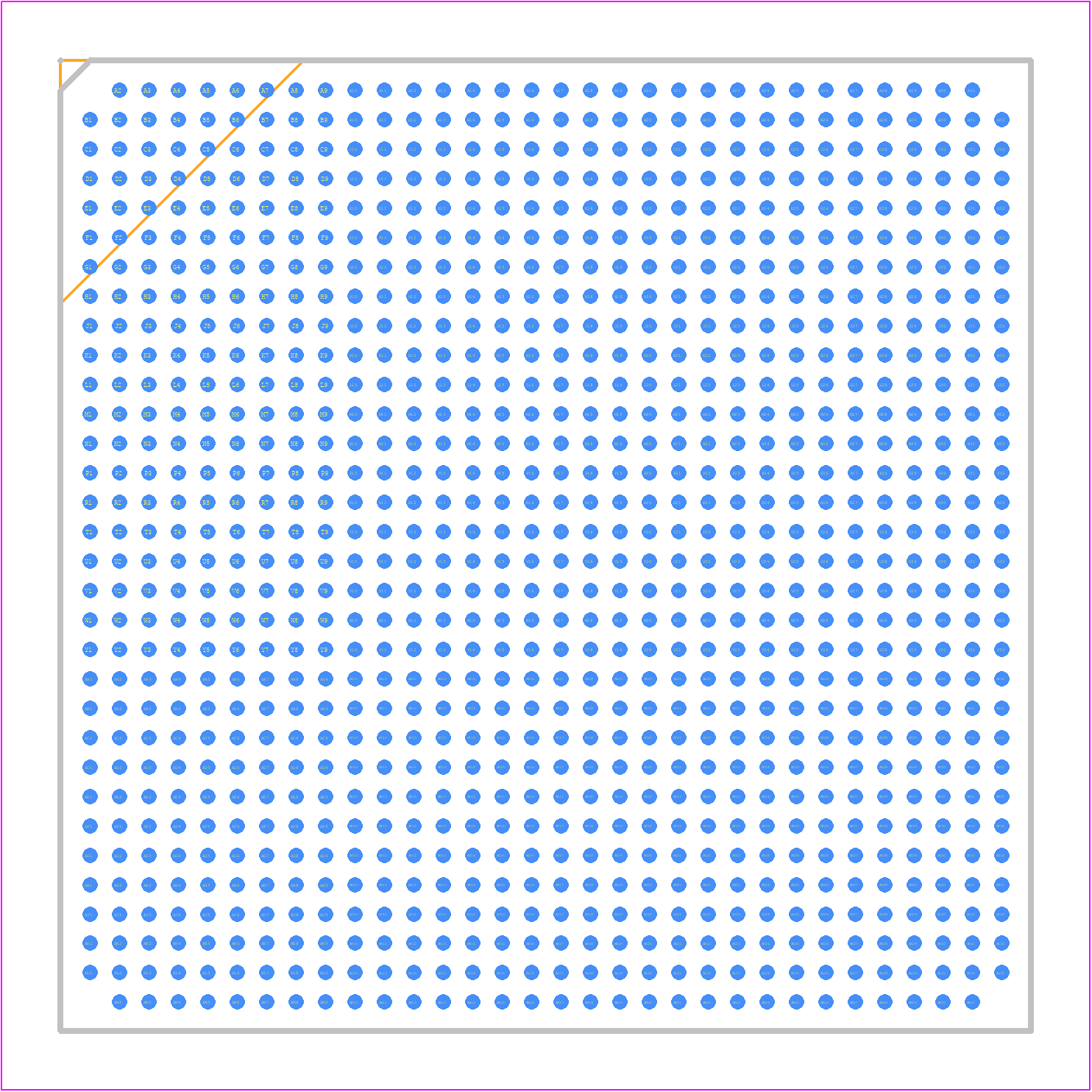

EP1SGX40GF1020C5 - Intel PCB footprint - BGA - BGA - 1020 FBGA
click to zoom
3D Models
EP1SGX40GF1020C5 - Intel - 3D model - BGA - 1020 FBGA
click to zoom

EP1SGX40GF1020C5 Details

  • Manufacturer Part Number:

    EP1SGX40GF1020C5

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    33 X 33 MM, 1 MM PITCH, FBGA-1020

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B1020

  • JESD-609 Code:

    e0

  • Length:

    33 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    4697

  • Number of Inputs:

    638

  • Number of Logic Cells:

    41250

  • Number of Outputs:

    638

  • Number of Terminals:

    1020

  • Operating Temperature-Max:

    85 °C

  • Organization:

    4697 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA1020,32X32,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.5 mm

  • Supply Voltage-Max:

    1.575 V

  • Supply Voltage-Min:

    1.425 V

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    33 mm

EP1SGX40GF1020C5 Frequently Asked Questions (FAQs)

  • The maximum power consumption of EP1SGX40GF1020C5 is 12W, but it can vary depending on the operating frequency, voltage, and usage.
  • Clock management in EP1SGX40GF1020C5 can be implemented using the Clock Control Block (CCB) and the Clock Management Unit (CMU). The CCB generates clock signals for the FPGA fabric, while the CMU manages the clock domains and clock switching.
  • The maximum operating frequency of EP1SGX40GF1020C5 is 250 MHz, but it can be overclocked to higher frequencies with proper cooling and power management.
  • Power consumption in EP1SGX40GF1020C5 can be optimized by using power-aware design techniques, such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS). Additionally, using the PowerPlay power management feature can help reduce power consumption.
  • The maximum temperature range for EP1SGX40GF1020C5 is -40°C to 100°C, but it can be extended to -55°C to 125°C with proper cooling and thermal management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EP1SGX40GF1020C5 Overview

Use the download button to access the EP1SGX40GF1020C5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP1SG, or try a keyword search, such as Field Programmable Gate Arrays
