EP2-5G1+ - Mini-Circuits

Description: Signal Conditioning 2 Ways MMIC Power Splitter, 12000 - 43500 MHz, 50ohm

Download EP2-5G1+ Model

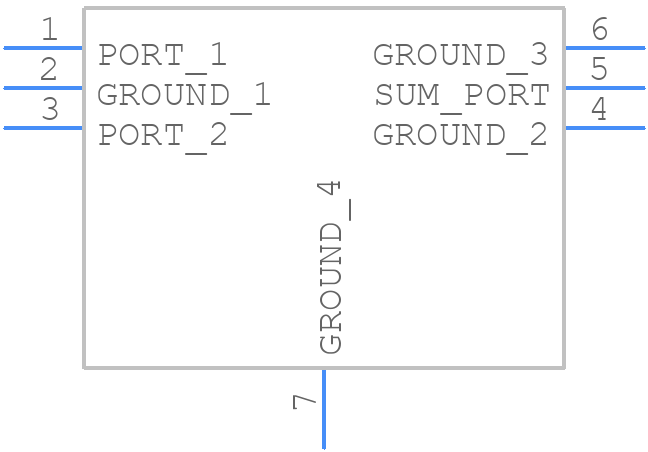

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EP2-5G1+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC1630+
click to zoom
3D Models
EP2-5G1+ - Mini-Circuits  - 3D model - Small Outline No-lead - MC1630+
click to zoom

EP2-5G1+ Details

  • Manufacturer Part Number:

    EP2-5G1+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-6

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-05-15

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.4

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    2.9 dB

  • Isolation-Min:

    7 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    43500 MHz

  • Operating Frequency-Min:

    12000 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6(UNSPEC)

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.7

EP2-5G1+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The EP2-5G1+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can also use simulation software like ADS or AWR to optimize the matching network.
  • The EP2-5G1+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
  • While the EP2-5G1+ is primarily designed for linear applications, it can be used in switching applications with some precautions. Ensure that the switching frequency is within the device's bandwidth, and consider adding external components to absorb switching transients.
  • Ensure good thermal conductivity by using a heat sink or a thermal pad on the device. Keep the ambient temperature within the recommended range, and avoid overheating the device, which can lead to reduced performance and reliability issues.
