EP2AGX45CU17C6N - Intel

EP2AGX45CU17C6N Details

• Manufacturer Part Number:

  EP2AGX45CU17C6N

• Part Life Cycle Code:

  Obsolete

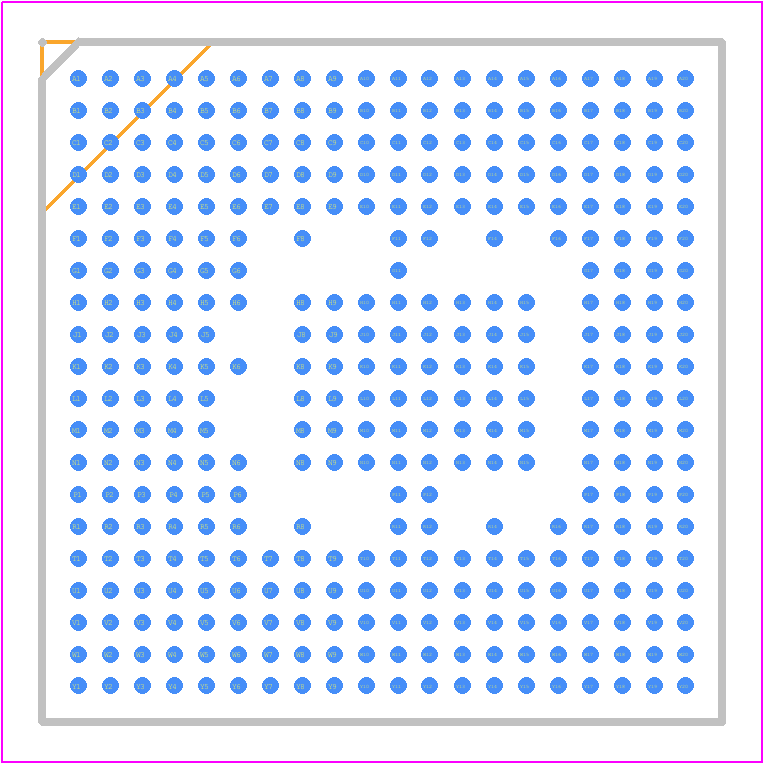

• Package Description:

  17 X 17 MM, LEAD FREE, MO-275, UBGA-358

• HTS Code:

  8542.31.00.60

• Manufacturer:

  Intel Corporation

• YTEOL:

  0

• Clock Frequency-Max:

  500 MHz

• JESD-30 Code:

  S-PBGA-B358

• JESD-609 Code:

  e1

• Length:

  17 mm

• Moisture Sensitivity Level:

  3

• Number of CLBs:

  1805

• Number of Inputs:

  156

• Number of Logic Cells:

  42959

• Number of Outputs:

  156

• Number of Terminals:

  358

• Operating Temperature-Max:

  85 °C

• Organization:

  1805 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA358,20X20,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.7 mm

• Supply Voltage-Max:

  0.93 V

• Supply Voltage-Min:

  0.87 V

• Supply Voltage-Nom:

  0.9 V

• Surface Mount:

  YES

• Technology:

  40 nm

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  17 mm
