- Part Number EP2AGX45CU17I5
- Manufacturer Intel
- Pin Count 358
- Part Category Integrated Circuit
- Package Category BGA

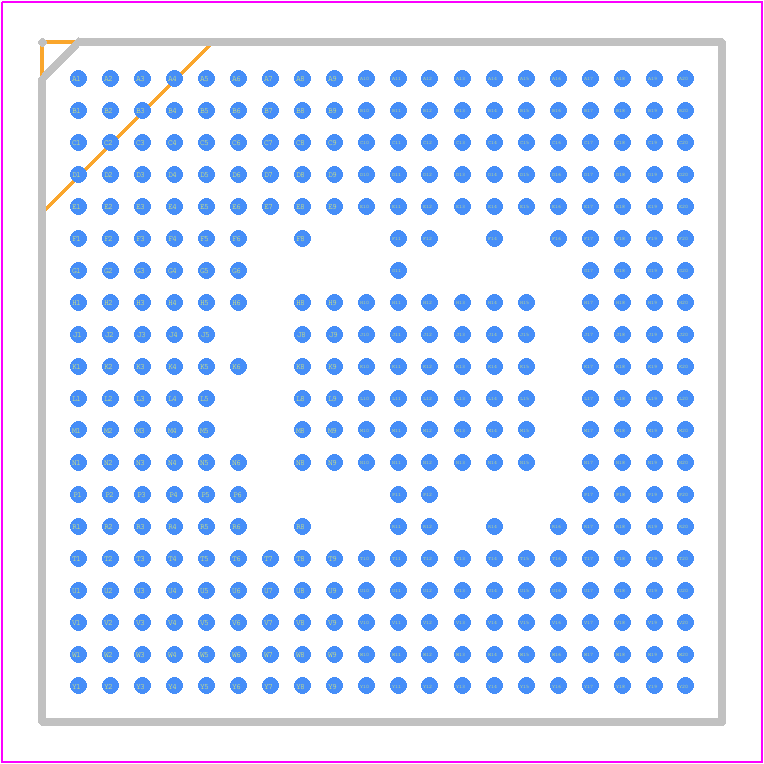

- Footprint Name BGA - UBGA_358
- Released Date Jan 24, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EP2AGX45CU17I5 Details
-
Manufacturer Part Number:
EP2AGX45CU17I5
-
Part Life Cycle Code:
Obsolete
-
Package Description:
UBGA-358
-
HTS Code:
8542.31.00.60
-
Manufacturer:
Intel Corporation
-
YTEOL:
0
-
JESD-30 Code:
S-PBGA-B358
-
Length:
17 mm
-
Number of Inputs:
156
-
Number of Logic Cells:
42959
-
Number of Outputs:
156
EP2AGX45CU17I5 Frequently Asked Questions (FAQs)
-
The maximum power consumption of EP2AGX45CU17I5 is around 25W, but it can vary depending on the specific use case and operating conditions.
-
To optimize the performance of EP2AGX45CU17I5, you can use Intel's Quartus Prime software to optimize the design, use pipelining and parallel processing, and minimize memory access latency.
-
The maximum operating temperature of EP2AGX45CU17I5 is 100°C, but it's recommended to operate it at a temperature below 85°C for optimal performance and reliability.
-
Yes, EP2AGX45CU17I5 is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its rugged design and compliance with various industry standards.
-
To ensure signal integrity in EP2AGX45CU17I5-based designs, you should follow Intel's guidelines for PCB design, use controlled impedance traces, and add signal termination and filtering as needed.
Trust Checks
Community Provided
System Verified
Community Approved
EP2AGX45CU17I5 Overview
Use the download button to access the EP2AGX45CU17I5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP2AG,
or try a keyword search, such as Field Programmable Gate Arrays
