- Part Number EP2AGX65DF25I5N
- Manufacturer Intel
- Pin Count 572
- Part Category Integrated Circuit
- Package Category BGA

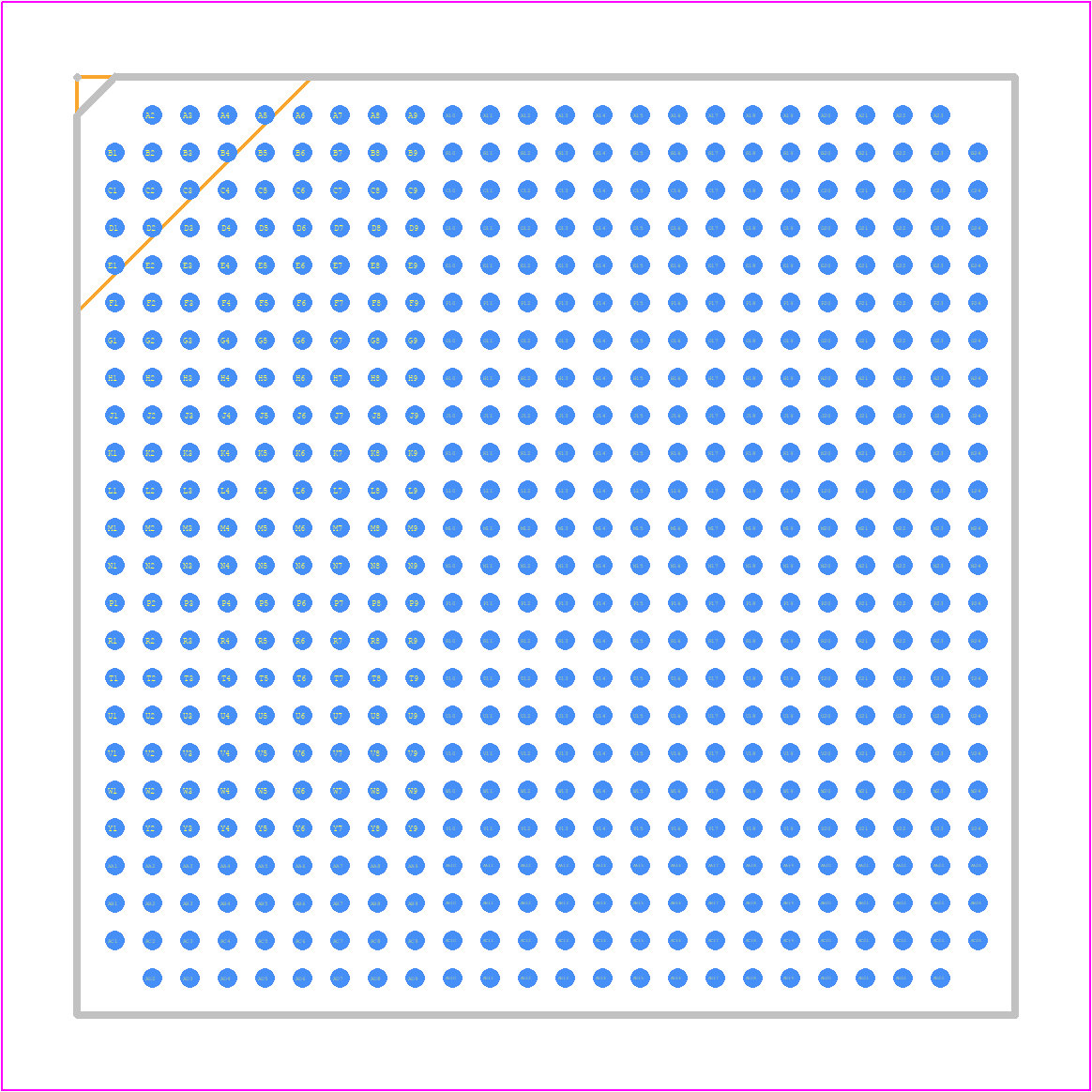

- Footprint Name BGA - 572-Pin FineLine Ball-Grid Array (FBGA) - Flip Chip - Lidless - A:2.20
- Released Date Nov 3, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EP2AGX65DF25I5N Details
-
Manufacturer Part Number:
EP2AGX65DF25I5N
-
Part Life Cycle Code:
Obsolete
-
Package Description:
25 X 25 MM, LEAD FREE, MS-034, FBGA-572
-
HTS Code:
8542.31.00.60
-
Manufacturer:
Intel Corporation
-
YTEOL:
0
-
Clock Frequency-Max:
500 MHz
-
JESD-30 Code:
S-PBGA-B572
-
JESD-609 Code:
e1
-
Length:
25 mm
-
Moisture Sensitivity Level:
3
EP2AGX65DF25I5N Frequently Asked Questions (FAQs)
-
The maximum power consumption of EP2AGX65DF25I5N is around 25W, but it can vary depending on the specific use case and operating conditions. It's recommended to consult the Intel Power and Thermal Guidelines document for more detailed information.
-
The EP2AGX65DF25I5N has a DDR3 memory interface, but it requires specific configuration and timing settings. Intel provides a DDR3 Memory Interface User Guide that provides detailed information on how to implement and configure the DDR3 interface.
-
Yes, the EP2AGX65DF25I5N is designed for high-reliability applications, such as aerospace, defense, and industrial control systems. It meets the requirements of various industry standards, including DO-254 and IEC 61508. However, it's essential to follow Intel's guidelines and recommendations for designing and testing high-reliability systems.
-
Optimizing the performance of EP2AGX65DF25I5N requires a combination of hardware and software techniques. Intel provides a range of optimization tools and guidelines, including the Intel FPGA SDK for OpenCL, the Intel Quartus Prime Pro software, and the Intel FPGA Performance Optimization Guide.
-
Yes, the EP2AGX65DF25I5N is compatible with various operating systems, including Linux, Windows, and VxWorks. Intel provides a range of software development tools and drivers to support these operating systems, including the Intel FPGA SDK for OpenCL and the Intel SoC FPGA Embedded Development Suite.
Trust Checks
Expert Contribution
System Verified
Community Approved
EP2AGX65DF25I5N Overview
Use the download button to access the EP2AGX65DF25I5N schematic symbol, PCB footprint, and 3D model.
