EP2KA+ - Mini-Circuits

Description: 2 Ways MMIC DC Pass Power Splitter, 10000 - 43500 MHz, 50Ω

Download EP2KA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

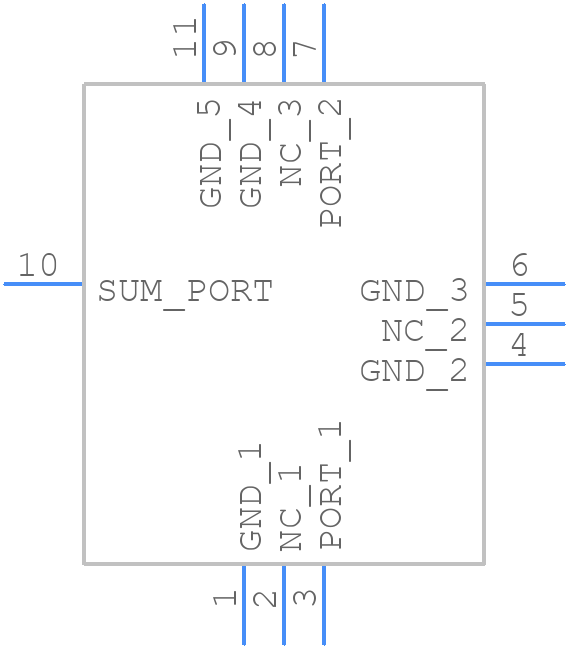

Symbol
EP2KA+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
EP2KA+ - Mini-Circuits PCB footprint - Other - Other - 3.5mm x 2.5mm QFN package
click to zoom
3D Models
EP2KA+ - Mini-Circuits - 3D model - Other - 3.5mm x 2.5mm QFN package
click to zoom

EP2KA+ Details

  • Manufacturer Part Number:

    EP2KA+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-07-27

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    ISOLATION-MIN (DB):17

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30.97 dBm

  • Insertion Loss-Max:

    2.8 dB

  • Operating Frequency-Max:

    43500 MHz

  • Operating Frequency-Min:

    10000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • VSWR-Max:

    1.6

EP2KA+ Frequently Asked Questions (FAQs)

  • The EP2KA+ can operate from -40°C to +85°C, but it's recommended to derate the power handling by 1 dB for every 10°C above 50°C.
  • The EP2KA+ has a nominal impedance of 50 ohms. For optimal performance, use a conjugate match to the device's input/output impedance. You can use a Smith chart or a network analyzer to determine the optimal matching network.
  • The EP2KA+ can handle up to +20 dBm (100 mW) of input power. Exceeding this limit may cause damage to the device or affect its performance.
  • Yes, the EP2KA+ can be used in switching applications, but it's essential to ensure that the device is properly biased and that the switching frequency is within the device's bandwidth. Consult the datasheet for specific guidance.
  • The EP2KA+ requires a positive voltage supply (Vdd) and a negative voltage supply (Vgg). Typically, Vdd is set to +5V to +12V, and Vgg is set to -5V to -12V. Consult the datasheet for specific biasing requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EP2KA+ Overview

Use the download button to access the EP2KA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP2KA, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
