EP2S90F1020C5N - Intel

Description: FPGA, STRATIX II

Download EP2S90F1020C5N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

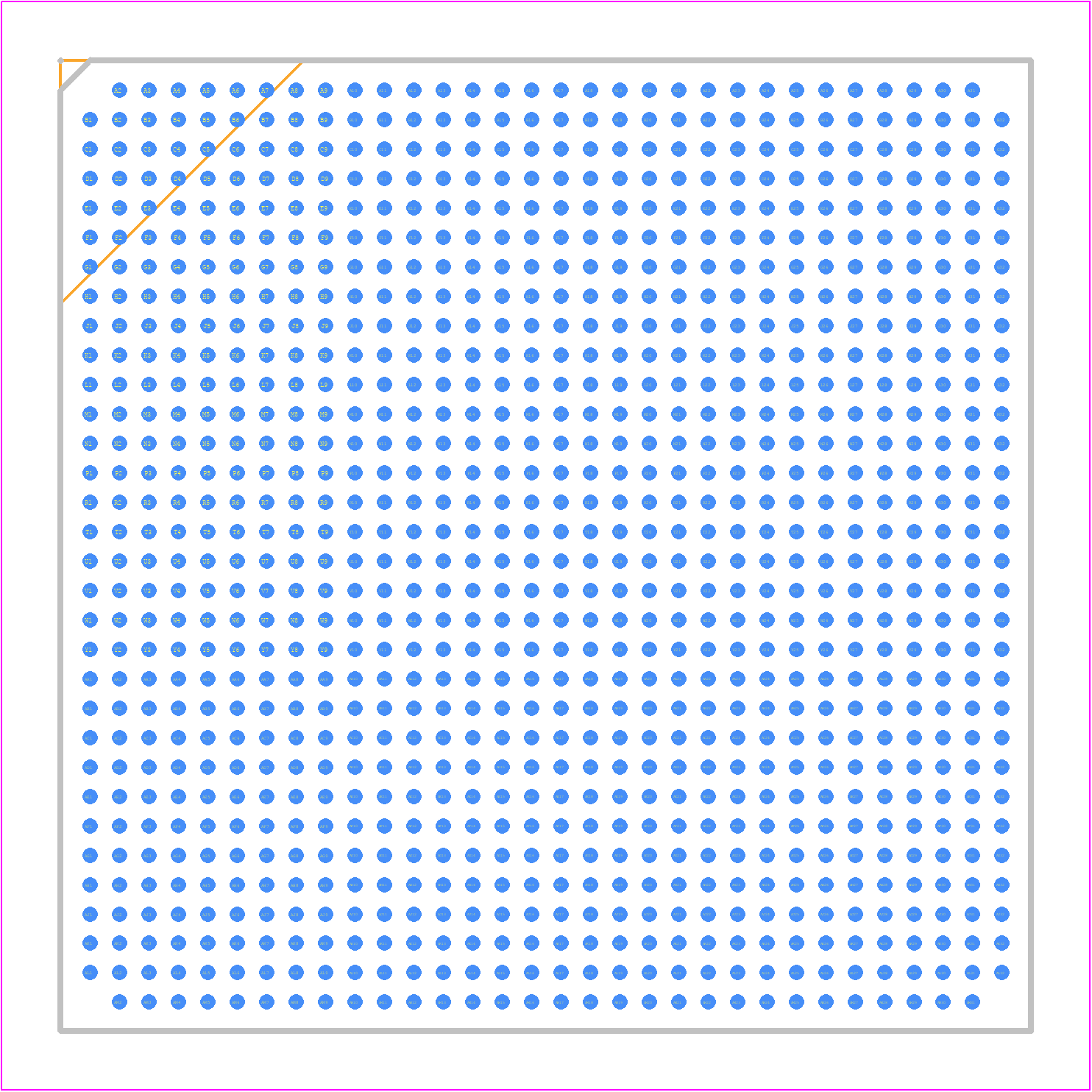

EP2S90F1020C5N - Intel PCB footprint - BGA - BGA - 1020 FBGA
click to zoom
3D Models
EP2S90F1020C5N - Intel  - 3D model - BGA - 1020 FBGA
click to zoom

EP2S90F1020C5N Details

  • Manufacturer Part Number:

    EP2S90F1020C5N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    33 X 33 MM, 1 MM PITCH, FBGA-1020

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    640 MHz

  • Combinatorial Delay of a CLB-Max:

    5.962 ns

  • JESD-30 Code:

    S-PBGA-B1020

  • JESD-609 Code:

    e1

  • Length:

    33 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    36384

  • Number of Inputs:

    758

  • Number of Logic Cells:

    90960

  • Number of Outputs:

    750

  • Number of Terminals:

    1020

  • Operating Temperature-Max:

    85 °C

  • Organization:

    36384 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA1020,32X32,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    245

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.5 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS; 90 nm

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    33 mm

EP2S90F1020C5N Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EP2S90F1020C5N is -40°C to 100°C.
  • A reliable POR circuit can be implemented using a voltage supervisor IC, such as the MAX809, which can detect power-on and power-down sequences and generate a reset signal to the FPGA.
  • The recommended PCB layout guidelines for the EP2S90F1020C5N include using a 4-layer PCB with a solid ground plane, placing decoupling capacitors near the FPGA, and using controlled impedance traces for high-speed signals.
  • To optimize timing closure, use the Intel Quartus II software to analyze and optimize the design's timing constraints, and consider using pipelining, retiming, and clock domain crossing techniques.
  • The EP2S90F1020C5N requires a configuration memory interface that can provide a 1x or 4x configuration data width, with a maximum clock frequency of 100 MHz.
