EP2S90F1020I4N - Intel

Description: FPGA - Field Programmable Gate Array FPGA - Stratix II 4548 LABs 758 IOs

Download EP2S90F1020I4N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

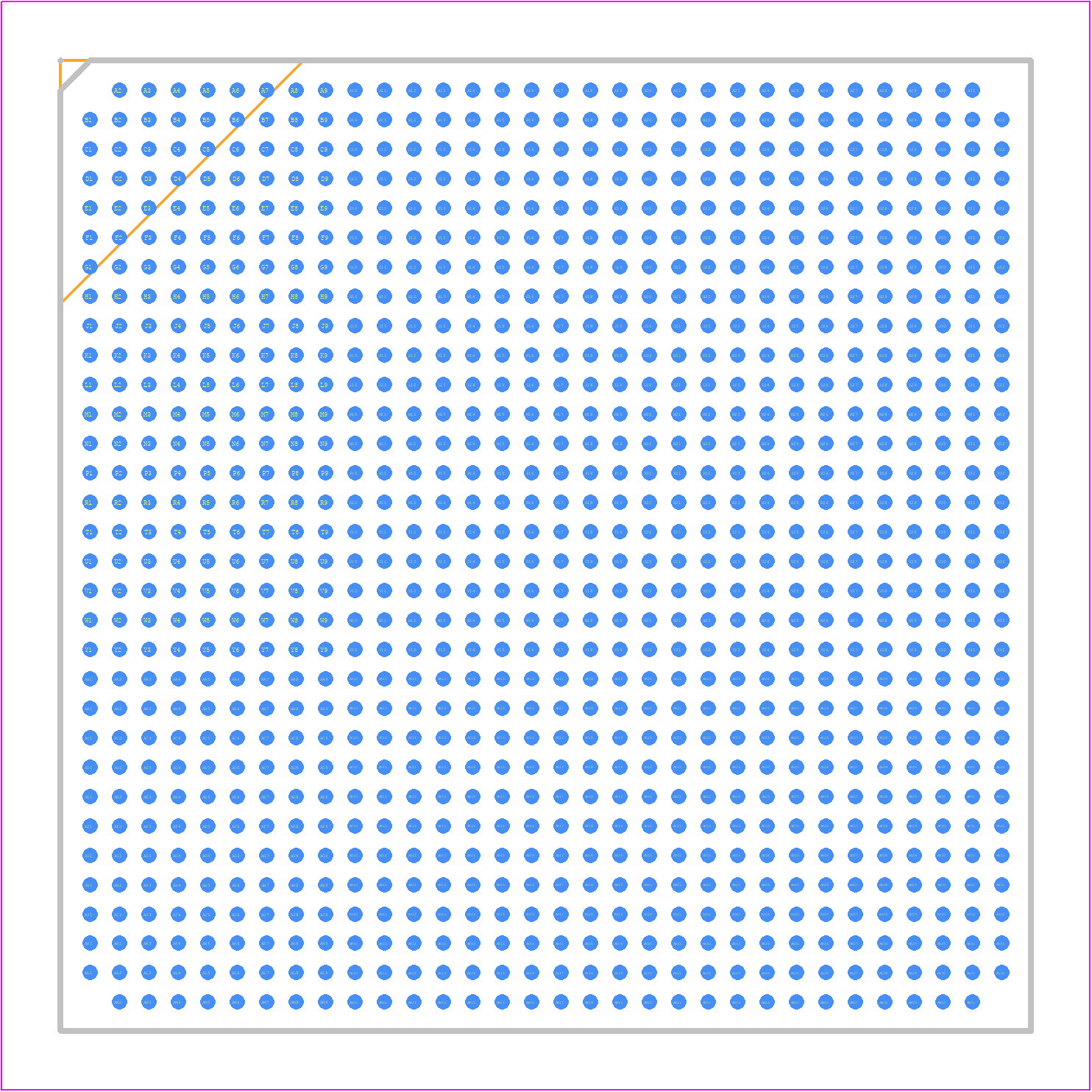

EP2S90F1020I4N - Intel PCB footprint - BGA - BGA - 1020 FBGA
click to zoom
3D Models
EP2S90F1020I4N - Intel  - 3D model - BGA - 1020 FBGA
click to zoom

EP2S90F1020I4N Details

  • Manufacturer Part Number:

    EP2S90F1020I4N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    33 X 33 MM, 1 MM PITCH, LEAD FREE, FBGA-1020

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    717 MHz

  • Combinatorial Delay of a CLB-Max:

    5.117 ns

  • JESD-30 Code:

    S-PBGA-B1020

  • JESD-609 Code:

    e1

  • Length:

    33 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    4548

  • Number of Inputs:

    758

  • Number of Logic Cells:

    90960

  • Number of Outputs:

    750

  • Number of Terminals:

    1020

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4548 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA1020,32X32,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.5 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS; 90 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    33 mm

EP2S90F1020I4N Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EP2S90F1020I4N is -40°C to 100°C.
  • Clock signal routing for the EP2S90F1020I4N should be implemented using a dedicated clock network, with careful attention to signal integrity and skew management.
  • The recommended power-up sequence for the EP2S90F1020I4N is to power up the core voltage (VCC) first, followed by the auxiliary voltage (VCCAUX) and then the input/output voltage (VCCIO).
  • To optimize the EP2S90F1020I4N for low power consumption, use the Intel Quartus II software to enable power-saving features such as clock gating, voltage scaling, and dynamic voltage and frequency scaling.
  • The maximum current rating for the EP2S90F1020I4N is 3.5A for the core voltage (VCC) and 1.5A for the auxiliary voltage (VCCAUX).
