EP3C16U484I7 - Intel

Description: FPGA - Field Programmable Gate Array FPGA - Cyclone III 963 LABs 346 IOs

Download EP3C16U484I7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EP3C16U484I7 - Intel - PCB symbol
click to zoom
PCB Footprints

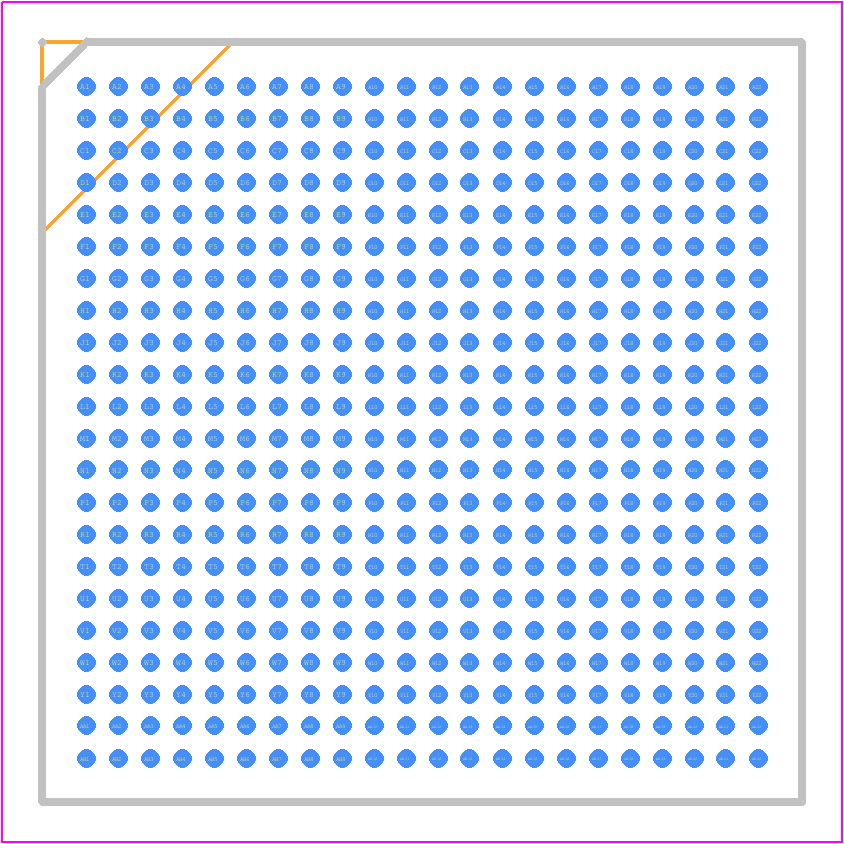

EP3C16U484I7 - Intel PCB footprint - BGA - BGA - 484-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:2.05
click to zoom
3D Models
EP3C16U484I7 - Intel - 3D model - BGA - 484-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:2.05
click to zoom

EP3C16U484I7 Details

  • Manufacturer Part Number:

    EP3C16U484I7

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    19 X 19 MM, 2.20 MM HEIGHT, 0.80 MM PITCH, UFBGA-484

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    10

  • Clock Frequency-Max:

    472.5 MHz

  • JESD-30 Code:

    R-PBGA-B484

  • Length:

    19 mm

  • Number of CLBs:

    15408

  • Number of Inputs:

    346

  • Number of Logic Cells:

    15408

  • Number of Outputs:

    346

  • Number of Terminals:

    484

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    15408 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA484,22X22,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.2 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    19 mm

EP3C16U484I7 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EP3C16U484I7 is -40°C to 100°C (industrial grade) and -40°C to 85°C (commercial grade).
  • To implement a clock tree in the EP3C16U484I7, use the Quartus II software to create a clock network that meets the device's clocking requirements. The software provides tools to analyze and optimize the clock tree for optimal performance and skew.
  • The maximum frequency supported by the EP3C16U484I7 is 500 MHz, but this can vary depending on the specific application and design requirements.
  • To configure the I/O banks in the EP3C16U484I7, use the Quartus II software to assign I/O standards, voltage levels, and other settings to each bank according to the device's datasheet and your design requirements.
  • The power consumption of the EP3C16U484I7 varies depending on the specific application, clock frequency, and other factors. However, the typical power consumption is around 1.2W to 2.5W, according to the datasheet.
