EP3C25E144A7N - Intel

Description: Cyclone® III Field Programmable Gate Array (FPGA) IC 82 608256 24624 144-LQFP Exposed Pad

Download EP3C25E144A7N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EP3C25E144A7N - Intel - PCB symbol
click to zoom

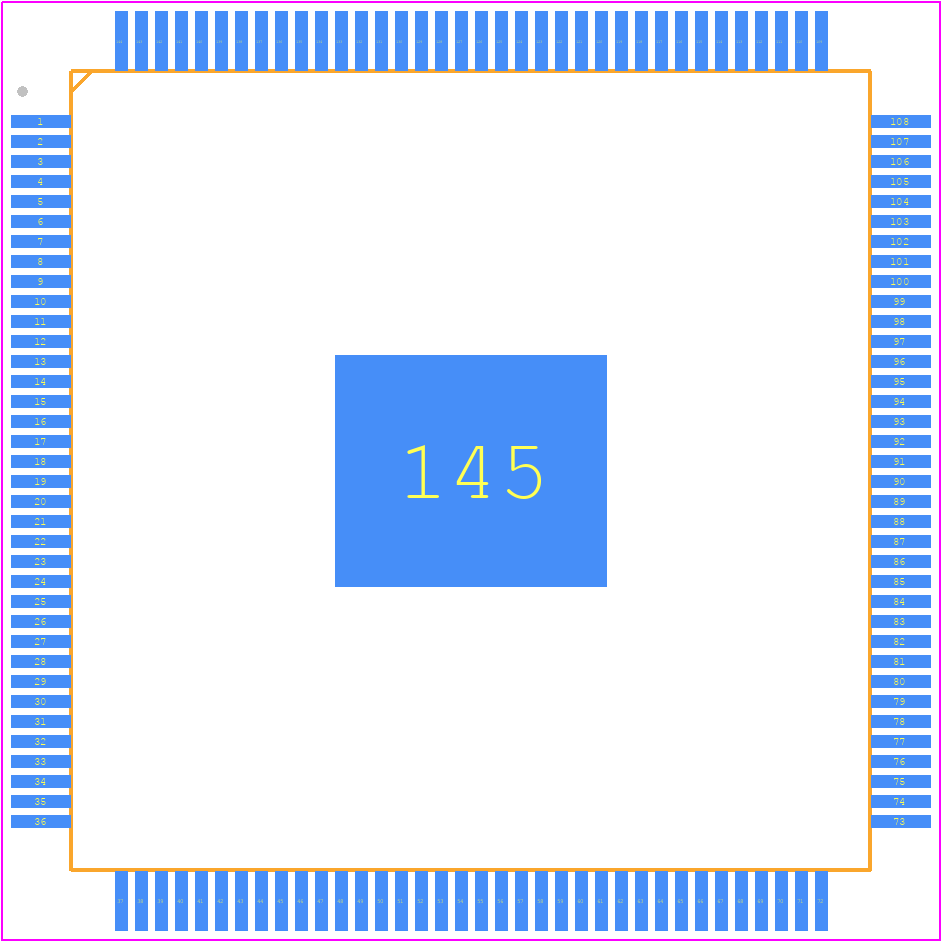

PCB Footprints
EP3C25E144A7N - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:4.00
click to zoom
3D Models
EP3C25E144A7N - Intel - 3D model - Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:4.00
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for EP3C25E144A7N
  • Part Number EP3C25E144A7N
  • Manufacturer Intel
  • Pin Count 145
  • Part Category Integrated Circuit
  • Package Category Quad Flat Packages
  • Footprint Name Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:4.00
  • Released Date Oct 10, 2023
  • Last Modified Date Oct 11, 2023 6:25 AM UTC
  • Pinout / Pin List Click Here (Member Only)

EP3C25E144A7N Details

  • Manufacturer Part Number:

    EP3C25E144A7N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    LEAD FREE, PLASTIC, EQFP-144

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    10

  • Clock Frequency-Max:

    472.5 MHz

  • JESD-30 Code:

    S-PQFP-G144

  • Number of CLBs:

    24624

  • Number of Inputs:

    82

  • Number of Logic Cells:

    24624

  • Number of Outputs:

    82

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    24624 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP144,.87SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

EP3C25E144A7N Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EP3C25E144A7N is -40°C to 100°C.
  • To implement a clock tree in the EP3C25E144A7N, use the Quartus II software to create a clock network that meets the device's clocking requirements. The software will help you optimize the clock tree for your specific design.
  • The maximum frequency of the EP3C25E144A7N depends on the specific application and design. However, the device can operate at frequencies up to 500 MHz.
  • To optimize power consumption in the EP3C25E144A7N, use the PowerPlay power analysis tool in the Quartus II software to identify areas of high power consumption and optimize your design accordingly. You can also use power-saving features such as clock gating and dynamic voltage and frequency scaling.
  • The maximum current rating for the EP3C25E144A7N is 1.5 A for the core voltage (VCC) and 1.5 A for the auxiliary voltage (VCCA).
