EP3C25E144C7 - Intel

Description: FPGA - Field Programmable Gate Array FPGA - Cyclone III 1539 LABs 82 IOs

Download EP3C25E144C7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

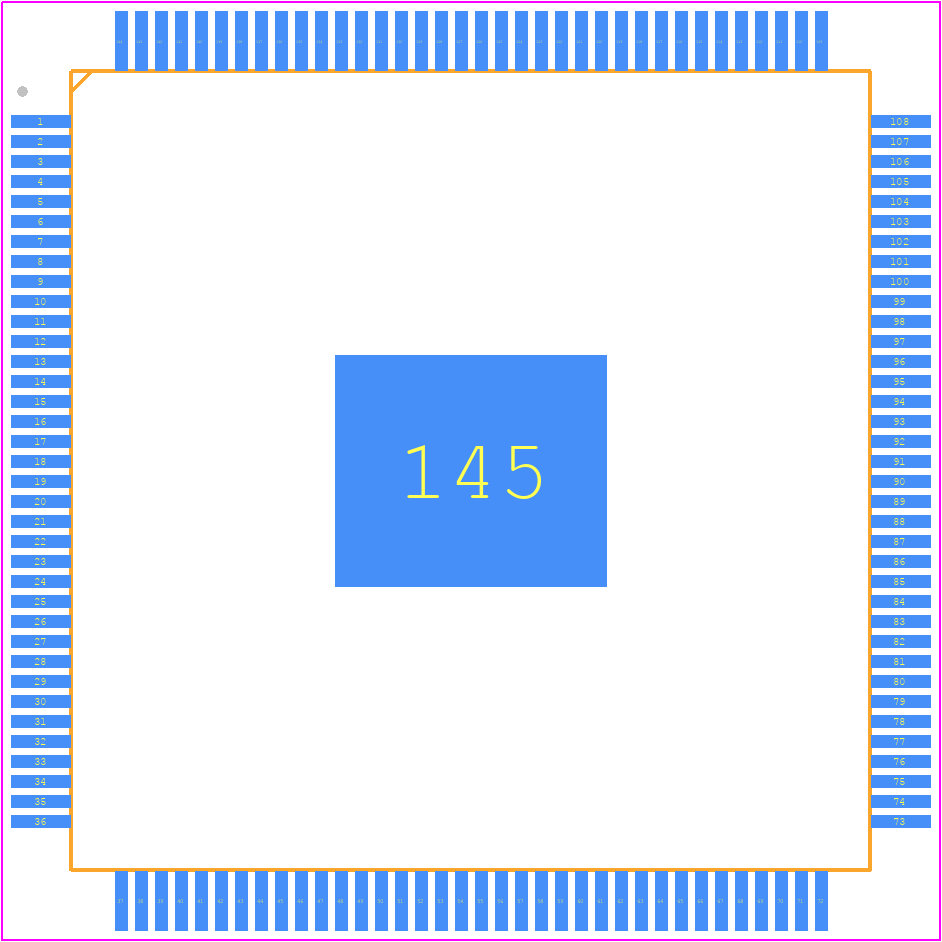

EP3C25E144C7 - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:4.00
click to zoom
3D Models
EP3C25E144C7 - Intel  - 3D model - Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:4.00
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for EP3C25E144C7
  • Part Number EP3C25E144C7
  • Manufacturer Intel
  • Pin Count 145
  • Part Category Integrated Circuit
  • Package Category Quad Flat Packages
  • Footprint Name Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:4.00
  • Released Date Jan 26, 2021
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

EP3C25E144C7 Details

  • Manufacturer Part Number:

    EP3C25E144C7

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    22 X 22 MM, 1.60 MM HEIGHT, 0.50 MM PITCH, PLASTIC, EQFP-144

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    472.5 MHz

  • JESD-30 Code:

    R-PQFP-G144

  • JESD-609 Code:

    e0

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    24624

  • Number of Inputs:

    82

  • Number of Logic Cells:

    24624

  • Number of Outputs:

    82

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    85 °C

  • Organization:

    24624 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP144,.87SQ,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    20 mm

EP3C25E144C7 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EP3C25E144C7 is -40°C to 100°C, with a junction temperature of up to 125°C.
  • To implement a clock tree in the EP3C25E144C7, use the Quartus II software to create a clock network that meets the device's clocking requirements. The software will help you optimize the clock tree for skew, jitter, and other performance metrics.
  • The maximum frequency supported by the EP3C25E144C7 is 500 MHz, although this can vary depending on the specific application and design requirements.
  • To configure the I/O banks in the EP3C25E144C7, use the Quartus II software to specify the I/O standard, voltage, and other settings for each bank. The software will help you ensure that the I/O banks are configured correctly for your specific application.
  • The power consumption of the EP3C25E144C7 varies depending on the specific application and design requirements. However, the typical power consumption is around 1.2 W, with a maximum power consumption of up to 2.5 W.
