EP4CE10F17I7N - Intel

Description: FPGA - Field Programmable Gate Array FPGA - Cyclone IV E 645 LABs 179 IOs

Download EP4CE10F17I7N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

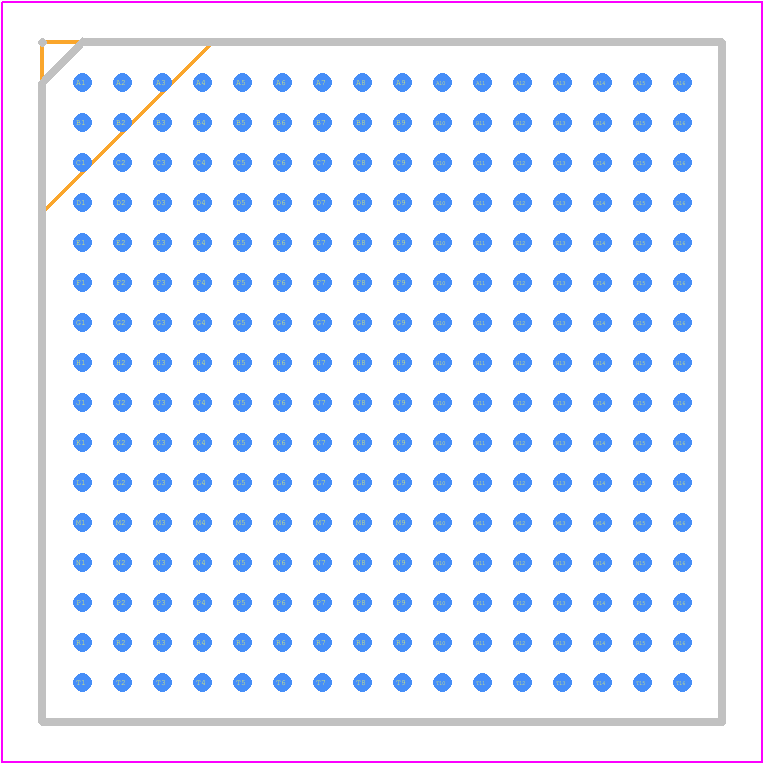

EP4CE10F17I7N - Intel PCB footprint - BGA - BGA - FBGA 256
click to zoom
3D Models
EP4CE10F17I7N - Intel  - 3D model - BGA - FBGA 256
click to zoom

EP4CE10F17I7N Details

  • Manufacturer Part Number:

    EP4CE10F17I7N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256

  • Reach Compliance Code:

    Not_compliant

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    7.5

  • Clock Frequency-Max:

    472.5 MHz

  • JESD-30 Code:

    S-PBGA-B256

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    645

  • Number of Inputs:

    179

  • Number of Logic Cells:

    10320

  • Number of Outputs:

    179

  • Number of Terminals:

    256

  • Organization:

    645 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA256,16X16,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm
