EP4CE15U14I7N - Intel

Description: FPGA - Field Programmable Gate Array FPGA - Cyclone IV E 963 LABs 165 IOs

Download EP4CE15U14I7N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

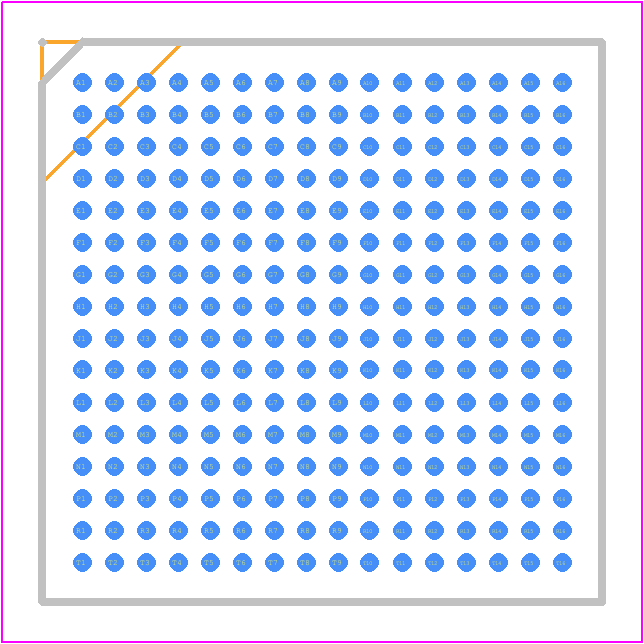

EP4CE15U14I7N - Intel PCB footprint - BGA - BGA - 256-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.50
click to zoom
3D Models
EP4CE15U14I7N - Intel  - 3D model - BGA - 256-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.50
click to zoom

EP4CE15U14I7N Details

  • Manufacturer Part Number:

    EP4CE15U14I7N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    LEAD FREE, UBGA-256

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    7

  • Clock Frequency-Max:

    472.5 MHz

  • JESD-30 Code:

    S-PBGA-B256

  • Length:

    14 mm

  • Number of Inputs:

    165

  • Number of Logic Cells:

    15408

  • Number of Outputs:

    165

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    963 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA256,16X16,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    60 nm

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    14 mm
