EP4CE22E22C9LN - Intel

EP4CE22E22C9LN Details

• Manufacturer Part Number:

  EP4CE22E22C9LN

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

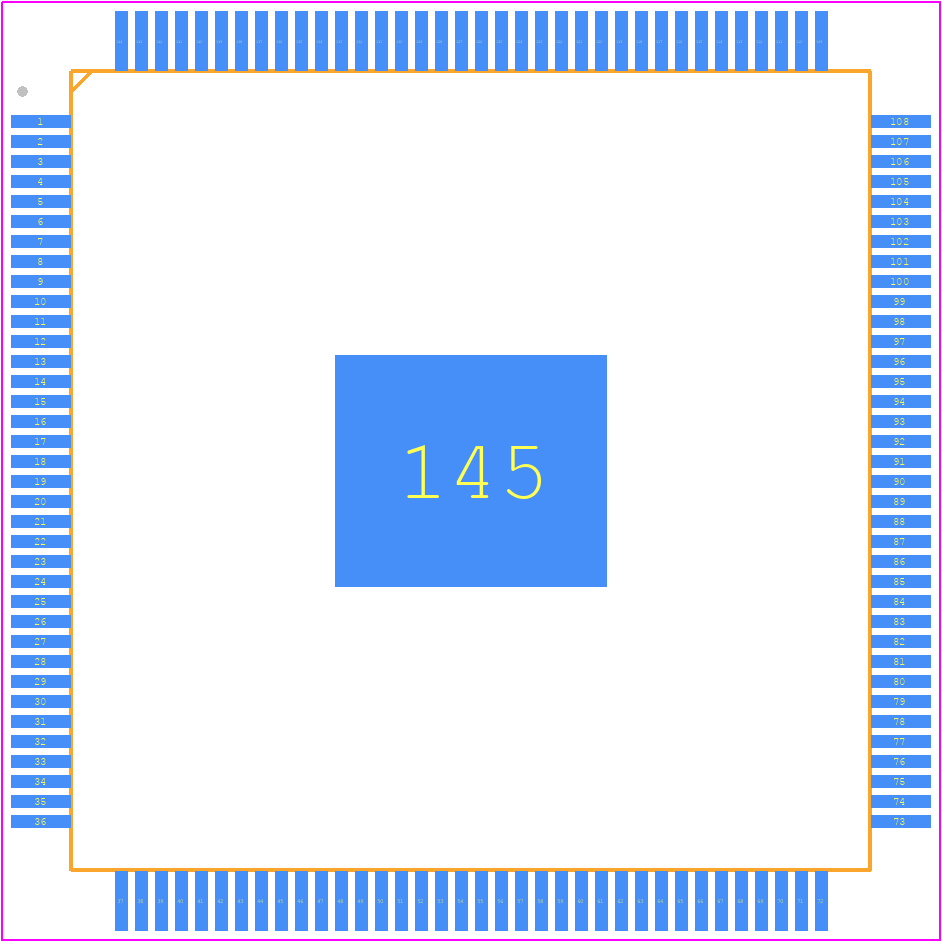

• Package Description:

  22 X 22 MM, 0.50 MM PITCH, LEAD FREE, EQFP-144

• Country Of Origin:

  Mainland China, Malaysia, Taiwan, USA, Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Intel Corporation

• YTEOL:

  7

• Clock Frequency-Max:

  265 MHz

• JESD-30 Code:

  S-PQFP-G144

• JESD-609 Code:

  e3

• Length:

  20 mm

• Moisture Sensitivity Level:

  3

• Number of CLBs:

  1395

• Number of Inputs:

  79

• Number of Logic Cells:

  22320

• Number of Outputs:

  79

• Number of Terminals:

  144

• Operating Temperature-Max:

  85 °C

• Organization:

  1395 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Equivalence Code:

  QFP144,.87SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.65 mm

• Supply Voltage-Max:

  1.03 V

• Supply Voltage-Min:

  0.97 V

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Technology:

  60 nm

• Temperature Grade:

  OTHER

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  20 mm
