Part Image

EP4CE6E22C8N - Intel

Description: FPGA Cyclone IV 6272 Cells TQFP144 EP4CE6E22C8N, FPGA Cyclone IV E 6272 Cells, 270kbit, 392 Blocks, 1.15 → 1.25 V 144-Pin EQFP

Download ECAD Model

PCB Footprints

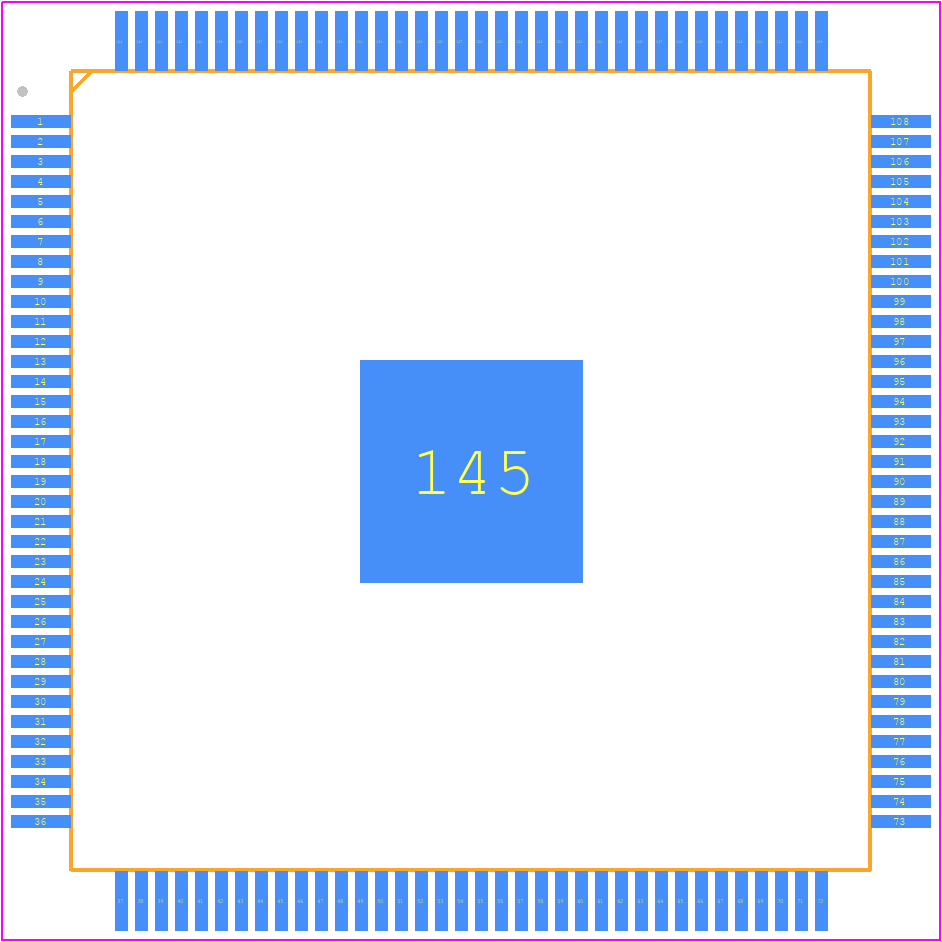

EP4CE6E22C8N - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - EQFP (A:1.65 - D2:4.00)
click to zoom

3D Models

EP4CE6E22C8N - Intel  - 3D model - Quad Flat Packages - EQFP (A:1.65 - D2:4.00)
click to zoom
