The maximum power consumption of EP4CGX110DF27C8N is approximately 12W, but it can vary depending on the specific use case and operating conditions.
To optimize the performance of EP4CGX110DF27C8N, ensure proper cooling, use the optimal clock frequency, and optimize the design to minimize power consumption. Additionally, use Intel's Quartus II software to optimize the FPGA design for performance.
The maximum operating temperature of EP4CGX110DF27C8N is 100°C (212°F), but it's recommended to operate within the commercial temperature range of 0°C to 85°C (32°F to 185°F) for optimal performance and reliability.
To ensure signal integrity in EP4CGX110DF27C8N designs, follow Intel's guidelines for signal routing, use differential signaling, and implement proper termination and shielding. Additionally, use simulation tools to analyze and optimize signal integrity.
The available development tools for EP4CGX110DF27C8N include Intel's Quartus II software, ModelSim-Altera simulation software, and the SoC Embedded Design Suite (EDS).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EP4CGX110DF27C8N Overview

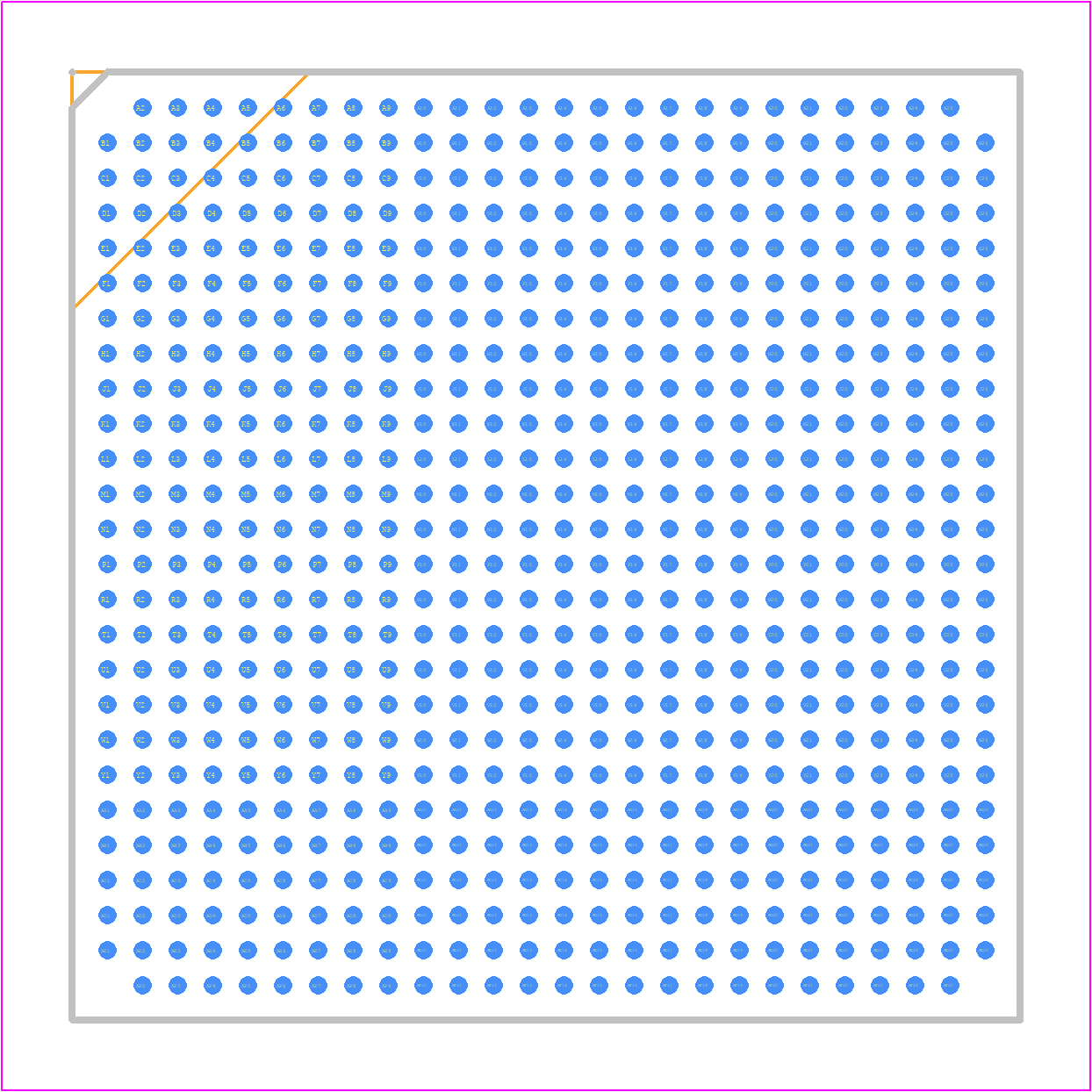

Use the download button to access the EP4CGX110DF27C8N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP4CG,
or try a keyword search, such as Field Programmable Gate Arrays
