EP4CGX150DF31I7N - Intel

Description: FPGA - Field Programmable Gate Array FPGA - Cyclone IV GX 9360 LABs 475 IOs

Download EP4CGX150DF31I7N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EP4CGX150DF31I7N - Intel - PCB symbol
click to zoom
PCB Footprints

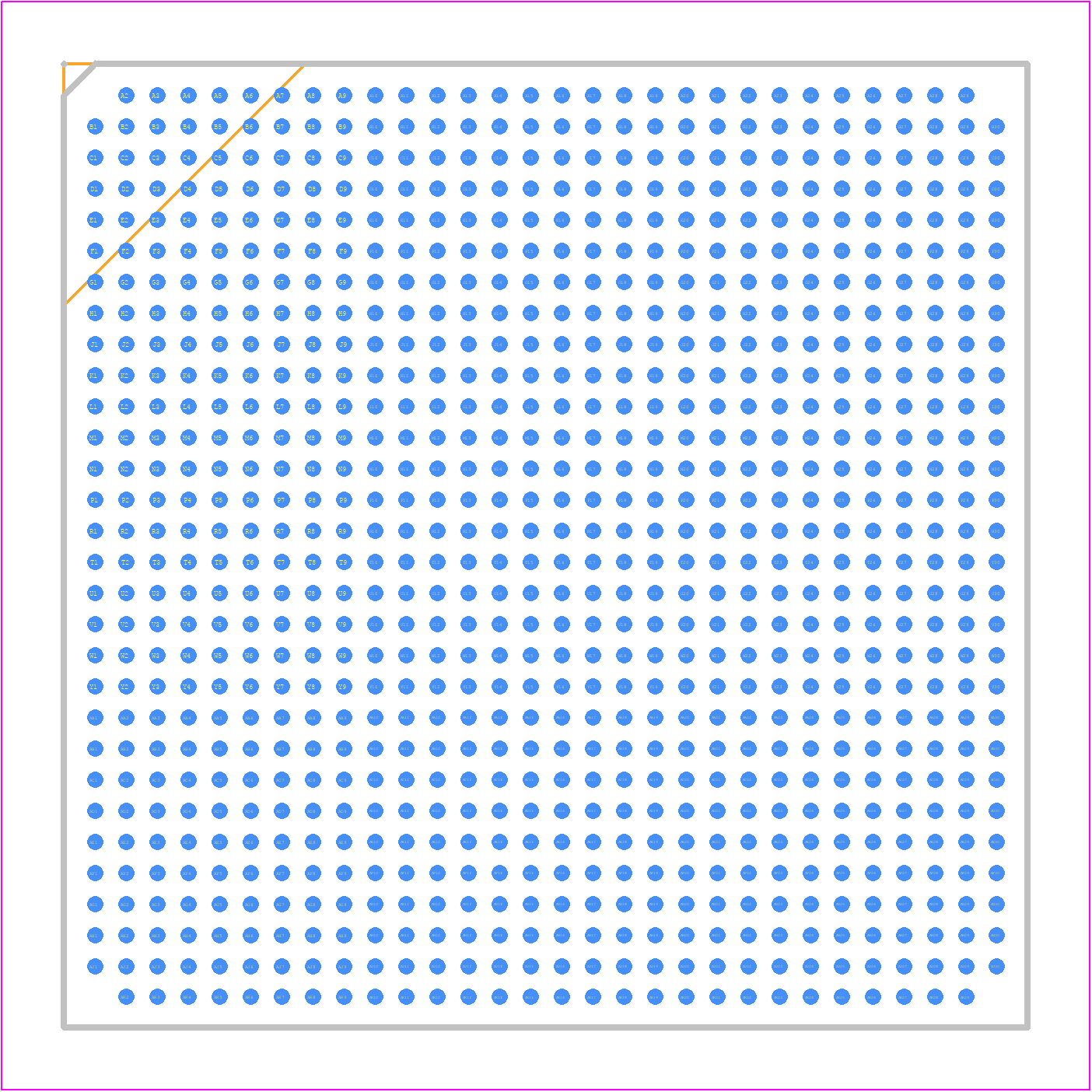

EP4CGX150DF31I7N - Intel PCB footprint - BGA - BGA - 896-bga
click to zoom
3D Models
EP4CGX150DF31I7N - Intel - 3D model - BGA - 896-bga
click to zoom

EP4CGX150DF31I7N Details

  • Manufacturer Part Number:

    EP4CGX150DF31I7N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    31 X 31 MM, 1 MM PITCH, LEAD FREE, FBGA-896

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    3A991

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    7

  • Clock Frequency-Max:

    472.5 MHz

  • JESD-30 Code:

    S-PBGA-B896

  • JESD-609 Code:

    e1

  • Length:

    31 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    9360

  • Number of Inputs:

    475

  • Number of Logic Cells:

    149760

  • Number of Outputs:

    475

  • Number of Terminals:

    896

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    9360 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA896,30X30,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.4 mm

  • Supply Voltage-Max:

    1.24 V

  • Supply Voltage-Min:

    1.16 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    60 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    31 mm

EP4CGX150DF31I7N Frequently Asked Questions (FAQs)

  • The maximum power consumption of EP4CGX150DF31I7N is approximately 25W, but it can vary depending on the specific use case and operating conditions.
  • To implement a reliable clocking scheme, you should use a high-quality clock source, such as a crystal oscillator, and ensure that the clock signal is properly routed and terminated. Additionally, you should consider using a clock domain crossing (CDC) circuit to synchronize clock domains.
  • The maximum operating frequency of EP4CGX150DF31I7N is 150 MHz, but it can be overclocked to higher frequencies with proper cooling and power management.
  • To optimize power consumption, you can use power-saving features such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS). Additionally, you can optimize your design to minimize power-hungry components and reduce switching activity.
  • The maximum temperature range for EP4CGX150DF31I7N is -40°C to 100°C, but it's recommended to operate within a temperature range of 0°C to 85°C for optimal performance and reliability.
