EP4CGX22CF19C8N - Intel

EP4CGX22CF19C8N Details

• Manufacturer Part Number:

  EP4CGX22CF19C8N

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

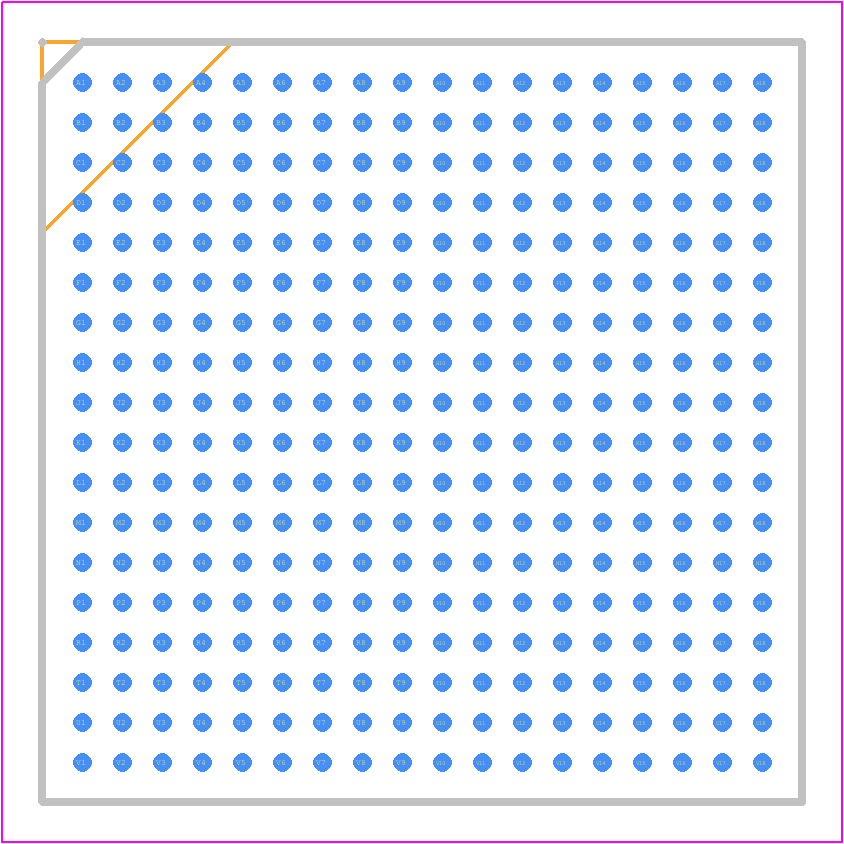

• Package Description:

  19 X 19 MM, 1 MM PITCH, LEAD FREE, FBGA-324

• Country Of Origin:

  Mainland China, Malaysia, Taiwan, USA, Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Intel Corporation

• YTEOL:

  7

• Clock Frequency-Max:

  472.5 MHz

• JESD-30 Code:

  S-PBGA-B324

• JESD-609 Code:

  e1

• Length:

  19 mm

• Moisture Sensitivity Level:

  3

• Number of CLBs:

  1330

• Number of Inputs:

  150

• Number of Logic Cells:

  21280

• Number of Outputs:

  150

• Number of Terminals:

  324

• Operating Temperature-Max:

  85 °C

• Organization:

  1330 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LBGA

• Package Equivalence Code:

  BGA324,18X18,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE

• Peak Reflow Temperature (Cel):

  260

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.55 mm

• Supply Voltage-Max:

  1.24 V

• Supply Voltage-Min:

  1.16 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  60 nm

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  19 mm
