The maximum power consumption of EP4CGX22CF19I7 is approximately 2.5W, but it can vary depending on the specific use case and operating conditions.
To implement a reliable clocking scheme, you should use a high-quality clock source, such as a crystal oscillator or a phase-locked loop (PLL), and ensure that the clock signal is properly routed and terminated on the PCB. Additionally, you should follow Intel's guidelines for clocking and clock domain crossing.
To handle thermal management, you should ensure good airflow around the device, use a heat sink or thermal interface material (TIM) if necessary, and implement thermal monitoring and shutdown mechanisms to prevent overheating. You should also follow Intel's guidelines for thermal management and thermal design power (TDP).
To optimize the performance of EP4CGX22CF19I7, you should optimize your design for the specific use case, use the right synthesis and place-and-route tools, and follow Intel's guidelines for performance optimization. You should also consider using Intel's IP cores and optimized libraries.
The limitations of EP4CGX22CF19I7 in terms of signal integrity include the maximum frequency of operation, the number of transceivers, and the signal attenuation and distortion. You should follow Intel's guidelines for signal integrity and use simulation tools to analyze and optimize your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EP4CGX22CF19I7 Overview

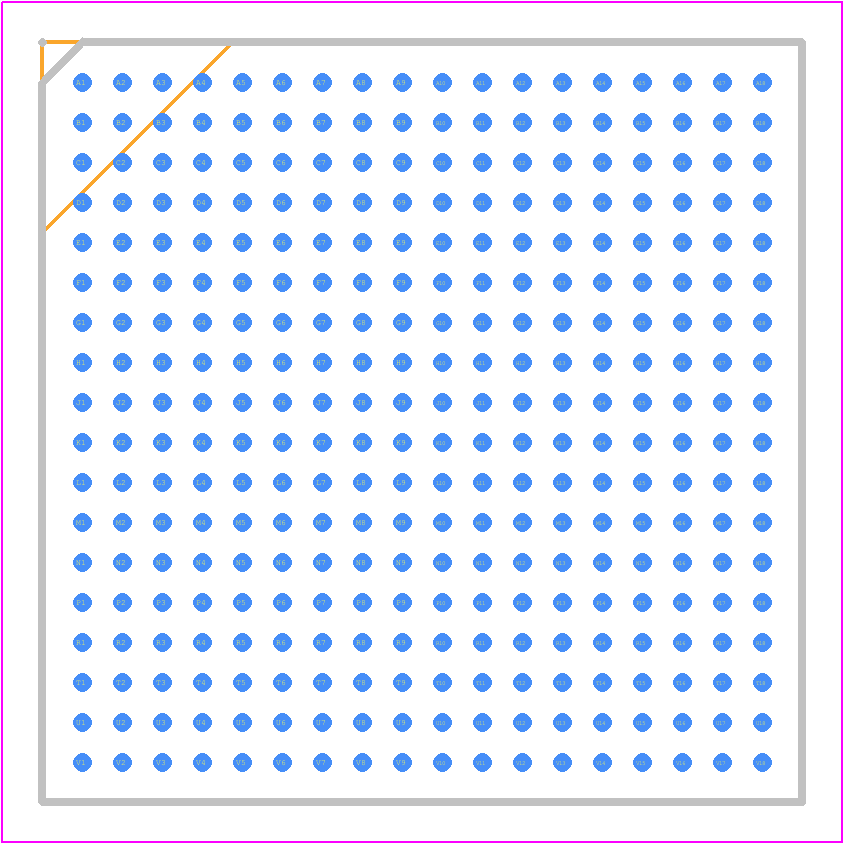

Use the download button to access the EP4CGX22CF19I7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP4CG,
or try a keyword search, such as Field Programmable Gate Arrays
