- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for EP4RKU+
- Part Number EP4RKU+
- Manufacturer Mini-Circuits
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - EP4RKU+--
- Released Date Mar 26, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EP4RKU+ Details
-
Manufacturer Part Number:
EP4RKU+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Date Of Intro:
2019-11-06
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
27.78 dBm
-
Insertion Loss-Max:
5.2 dB
EP4RKU+ Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the EP4RKU+ is -40°C to +85°C.
-
Yes, the EP4RKU+ is designed to operate in humid environments, but it's recommended to follow proper storage and handling procedures to prevent moisture damage.
-
Mini-Circuits recommends a 4-layer PCB with a solid ground plane and a separate power plane for the EP4RKU+. A good grounding scheme involves connecting the EP4RKU+ ground pins to the PCB ground plane using low-impedance paths.
-
To optimize the EP4RKU+ for low noise figure and high gain, use a high-quality PCB with low-loss materials, ensure proper impedance matching, and optimize the biasing and loading conditions according to the datasheet.
-
Yes, the EP4RKU+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout considerations to ensure proper impedance matching and heat dissipation.
Trust Checks
Community Provided
System Verified
Community Approved
EP4RKU+ Overview

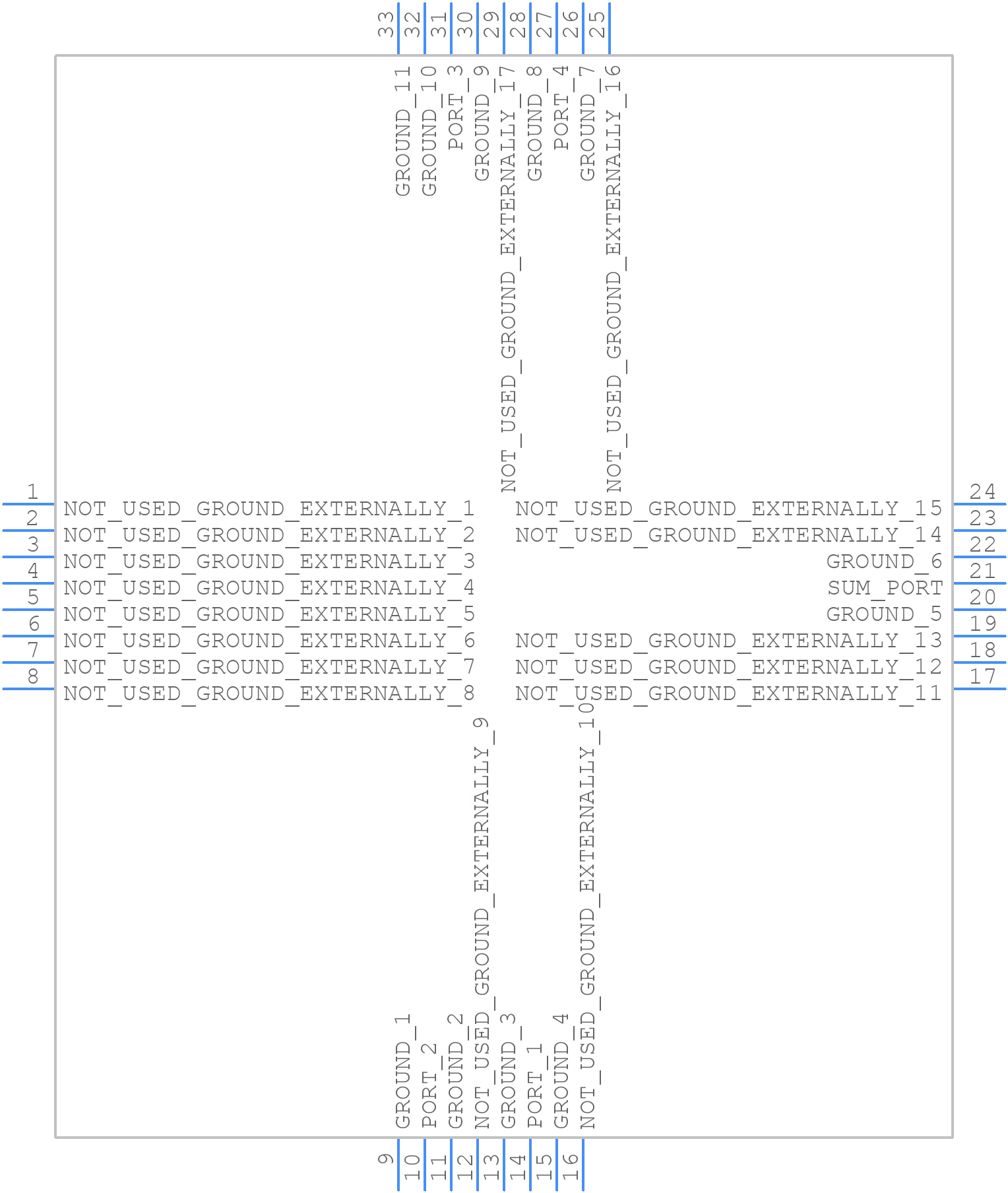

Use the download button to access the EP4RKU+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP4RK,
or try a keyword search, such as RF/Microwave Splitter/Combiners
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
