EP4S40G5H40I2 - Intel

Description: IC FPGA 654 I/O 1517HBGA

Download EP4S40G5H40I2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

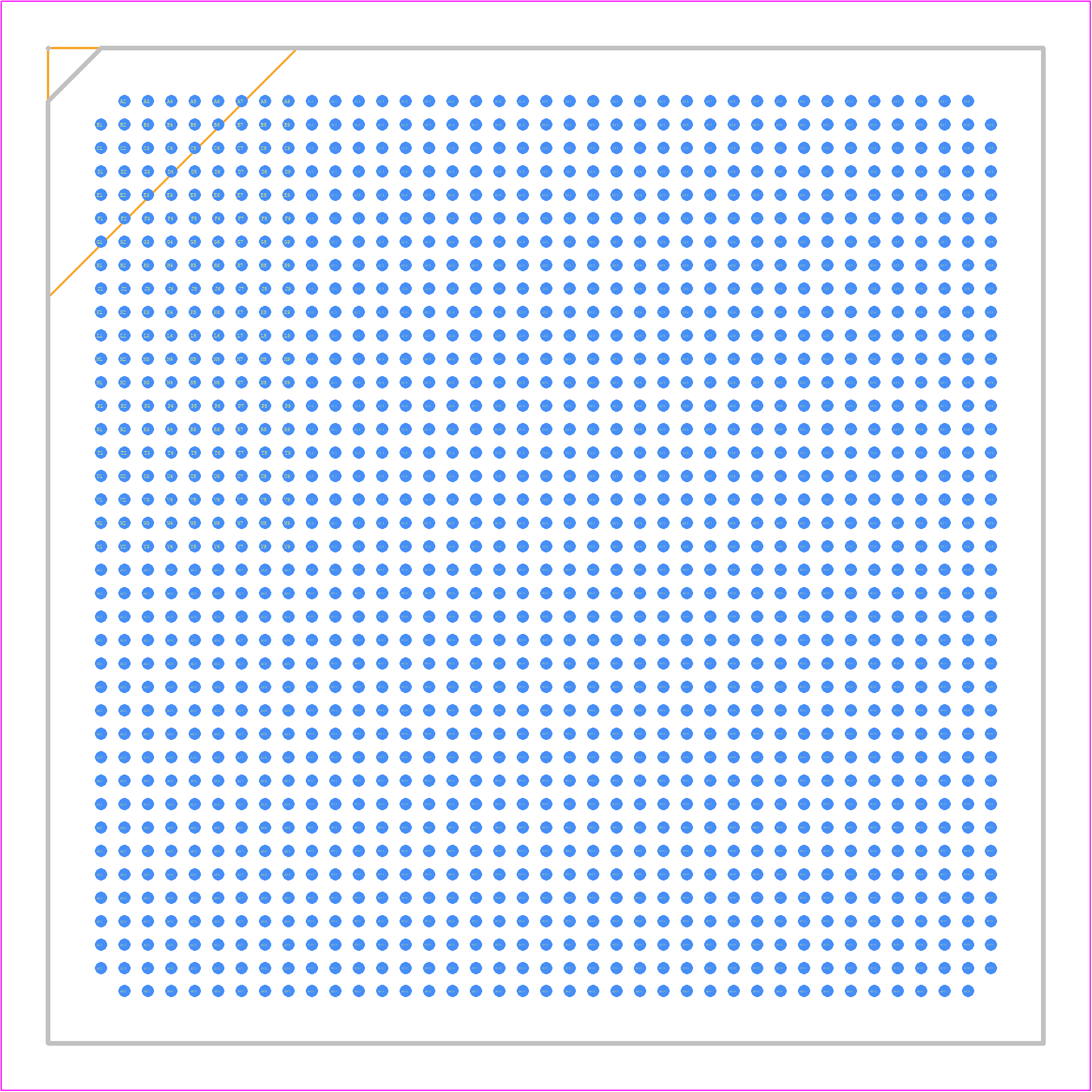

PCB Footprints
EP4S40G5H40I2 - Intel PCB footprint - BGA - BGA - HBGA
click to zoom
3D Models
EP4S40G5H40I2 - Intel  - 3D model - BGA - HBGA
click to zoom

EP4S40G5H40I2 Details

  • Manufacturer Part Number:

    EP4S40G5H40I2

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HBGA-1517

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    800 MHz

  • JESD-30 Code:

    S-PBGA-B

  • JESD-609 Code:

    e0

  • Length:

    42.5 mm

  • Number of CLBs:

    212480

  • Number of Inputs:

    654

  • Number of Logic Cells:

    531200

  • Number of Outputs:

    654

  • Number of Terminals:

    1517

  • Operating Temperature-Max:

    100 °C

  • Organization:

    21248 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA1517,39X39,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.8 mm

  • Supply Voltage-Max:

    0.98 V

  • Supply Voltage-Min:

    0.92 V

  • Supply Voltage-Nom:

    0.95 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 40 nm

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    42.5 mm

EP4S40G5H40I2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EP4S40G5H40I2 is -40°C to 100°C, with a junction temperature of up to 125°C.
  • Intel provides a DDR3 memory interface IP core that can be used to implement DDR3 memory interface on the EP4S40G5H40I2. The IP core is available through the Intel Quartus Prime software.
  • The maximum clock frequency supported by the EP4S40G5H40I2 is up to 500 MHz, depending on the specific clock domain and the device speed grade.
  • To optimize power consumption on the EP4S40G5H40I2, use the Intel Quartus Prime Power Play power analysis and optimization tool, which provides power estimation and optimization techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling.
  • The EP4S40G5H40I2 has a total of 40,440 logic elements (LEs) available.
