Intel provides a PCB design guide for the EP4SE530H40I3, which recommends a 10-layer PCB stackup with specific layer assignments for signals, power, and ground. The guide also provides guidelines for trace routing, spacing, and termination.
Intel recommends using the PowerPlay Early Power Estimator (EPE) tool to estimate power consumption. Additionally, the FPGA has built-in thermal management features, such as temperature sensors and thermal monitoring IP. Proper PCB design, heat sink selection, and airflow management are also crucial for thermal management.
The EP4SE530H40I3's high-speed transceivers have specific requirements for PCB design, signal integrity, and clocking. Engineers should carefully follow Intel's guidelines for transmitter and receiver design, and consider factors like channel loss, jitter, and signal attenuation.
Intel recommends using a robust configuration scheme, such as the Quad SPI Flash interface, and following guidelines for configuration file creation and validation. Additionally, engineers should ensure proper power sequencing, clocking, and reset signal management during boot-up.
Intel provides a Secure Boot solution for the EP4SE530H40I3, which includes features like firmware authentication, encryption, and secure key storage. Engineers should follow Intel's guidelines for implementing secure boot, and consider using additional security measures like secure boot mechanisms and anti-tamper protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EP4SE530H40I3 Overview

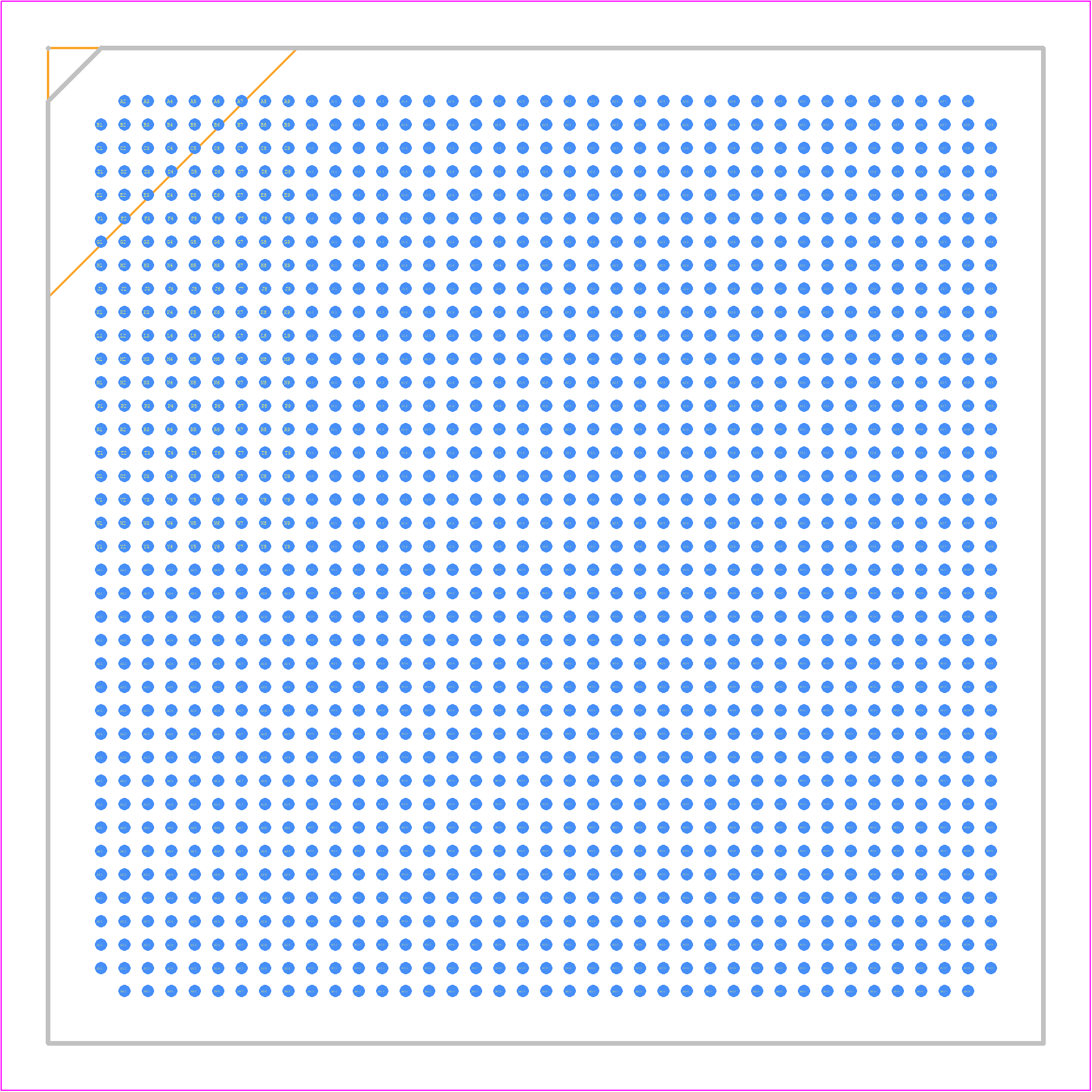

Use the download button to access the EP4SE530H40I3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP4SE,
or try a keyword search, such as Field Programmable Gate Arrays
