EP4SGX530KH40C3 - Intel

EP4SGX530KH40C3 Details

• Manufacturer Part Number:

  EP4SGX530KH40C3

• Part Life Cycle Code:

  Obsolete

• Package Description:

  HBGA-1517

• HTS Code:

  8542.31.00.60

• Manufacturer:

  Intel Corporation

• YTEOL:

  0

• Clock Frequency-Max:

  717 MHz

• JESD-30 Code:

  S-PBGA-B1517

• Length:

  42.5 mm

• Number of CLBs:

  212480

• Number of Inputs:

  744

• Number of Logic Cells:

  531200

• Number of Outputs:

  744

• Number of Terminals:

  1517

• Operating Temperature-Max:

  85 °C

• Organization:

  21248 CLBS

• Package Body Material:

  PLASTIC/EPOXY

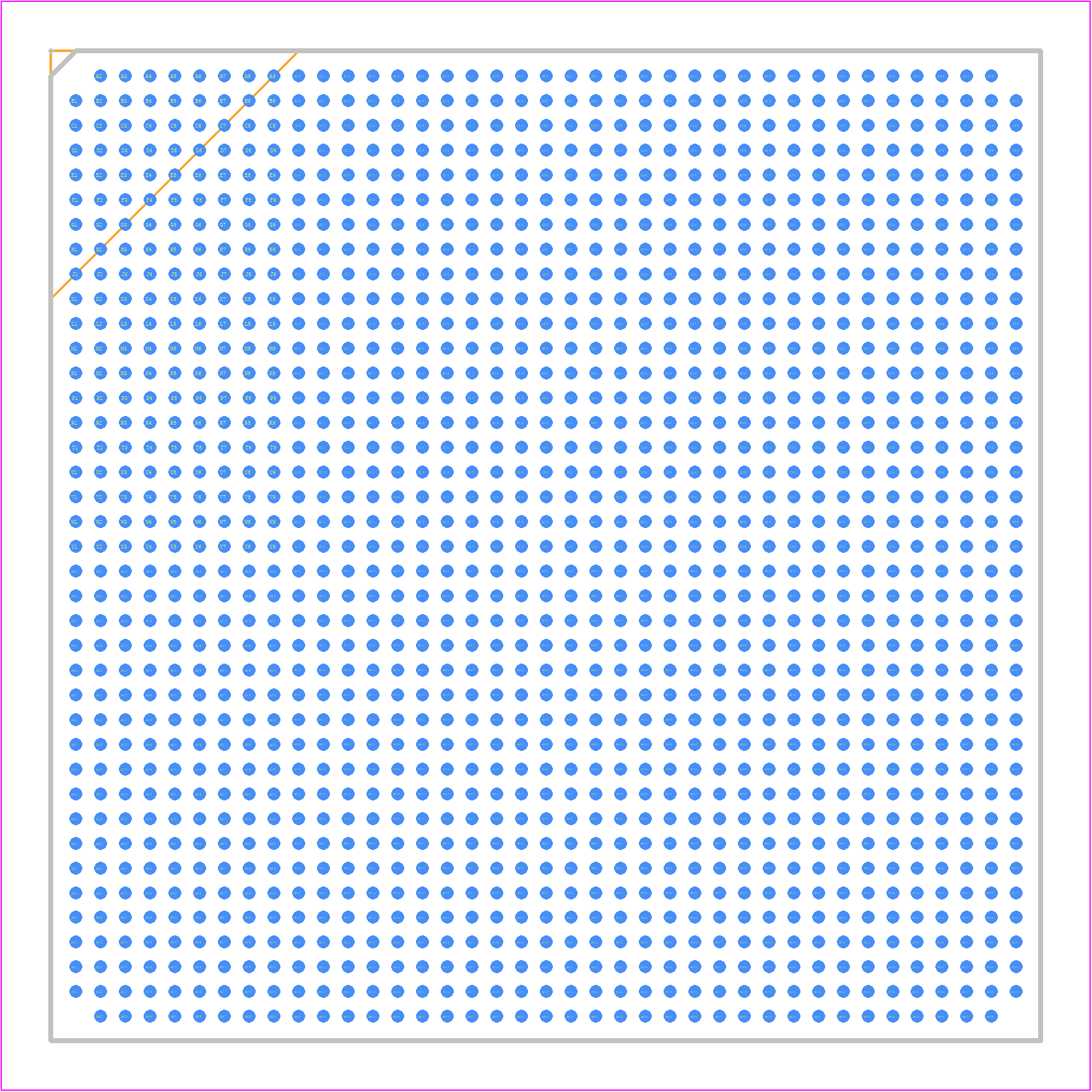

• Package Code:

  BGA

• Package Equivalence Code:

  BGA1517,39X39,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.8 mm

• Supply Voltage-Max:

  0.93 V

• Supply Voltage-Min:

  0.87 V

• Supply Voltage-Nom:

  0.9 V

• Surface Mount:

  YES

• Technology:

  CMOS, 40 nm

• Temperature Grade:

  OTHER

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  42.5 mm
