EPC8002 - Efficient Power Conversion

Description: N-Channel 65 V 2A (Ta) 480 mΩ ID 2A Surface Mount Die

Download EPC8002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

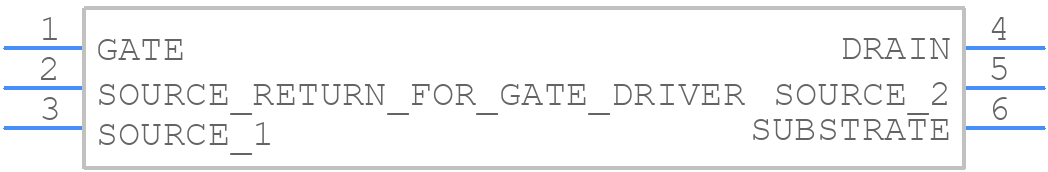

Symbol
EPC8002 - Efficient Power Conversion - PCB symbol
click to zoom
PCB Footprints
EPC8002 - Efficient Power Conversion PCB footprint - Other - Other - EPC8002-1
click to zoom
3D Models
EPC8002 - Efficient Power Conversion - 3D model - Other - EPC8002-1
click to zoom

EPC8002 Details

  • Manufacturer Part Number:

    EPC8002

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, DIE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Efficient Power Conversion

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    65 V

  • Drain-source On Resistance-Max:

    0.53 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XXUC-X6

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    UNCASED CHIP

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    2 A

  • Surface Mount:

    YES

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    GALLIUM NITRIDE

EPC8002 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-frequency components close to the device and use short, wide traces for the high-current paths.
  • Use a thermal interface material (TIM) between the device and the heat sink. Ensure good airflow around the heat sink and consider using a fan for high-power applications.
  • The maximum allowed voltage on the VIN pin is 5.5V, but it's recommended to keep it below 5V to ensure reliable operation.
  • Use an external current sense resistor and a voltage regulator to limit the input current. Implement thermal monitoring and shutdown the device if the temperature exceeds 150°C.
  • Yes, the EPC8002 is AEC-Q101 qualified and suitable for high-reliability and automotive applications. However, ensure that the device is used within its recommended operating conditions and follow proper design and testing guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EPC8002 Overview

Use the download button to access the EPC8002 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPC80, or try a keyword search, such as Power Field-Effect Transistors
