Intel recommends a 4-layer PCB with a solid ground plane, and a thermal design that ensures a maximum junction temperature of 100°C. A thermal pad on the bottom of the package helps with heat dissipation.
Use a signal integrity analysis tool to optimize trace lengths, impedance, and termination. Implement a multi-layer PCB with a solid ground plane, and use differential signaling and shielding to minimize noise.
The EPCQ4ASI8N requires a power-on sequence of VCCIO, then VCC, and a ramp-up time of 100 ms to ensure proper device operation and prevent latch-up.
Use a high-quality clock source, such as a crystal oscillator, and implement a clock tree with a single clock domain. Ensure clock signal integrity by using a clock buffer and minimizing clock skew.
Use a combination of high-frequency and low-frequency decoupling capacitors, with a total capacitance of at least 100 nF, and implement a power filter with a ferrite bead and a bypass capacitor to minimize power noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPCQ4ASI8N Overview

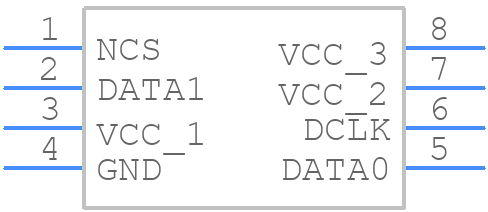

Use the download button to access the EPCQ4ASI8N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPCQ4,
or try a keyword search, such as Flash Memories
