EPF10K50RI240-4N - Intel

EPF10K50RI240-4N Details

• Manufacturer Part Number:

  EPF10K50RI240-4N

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

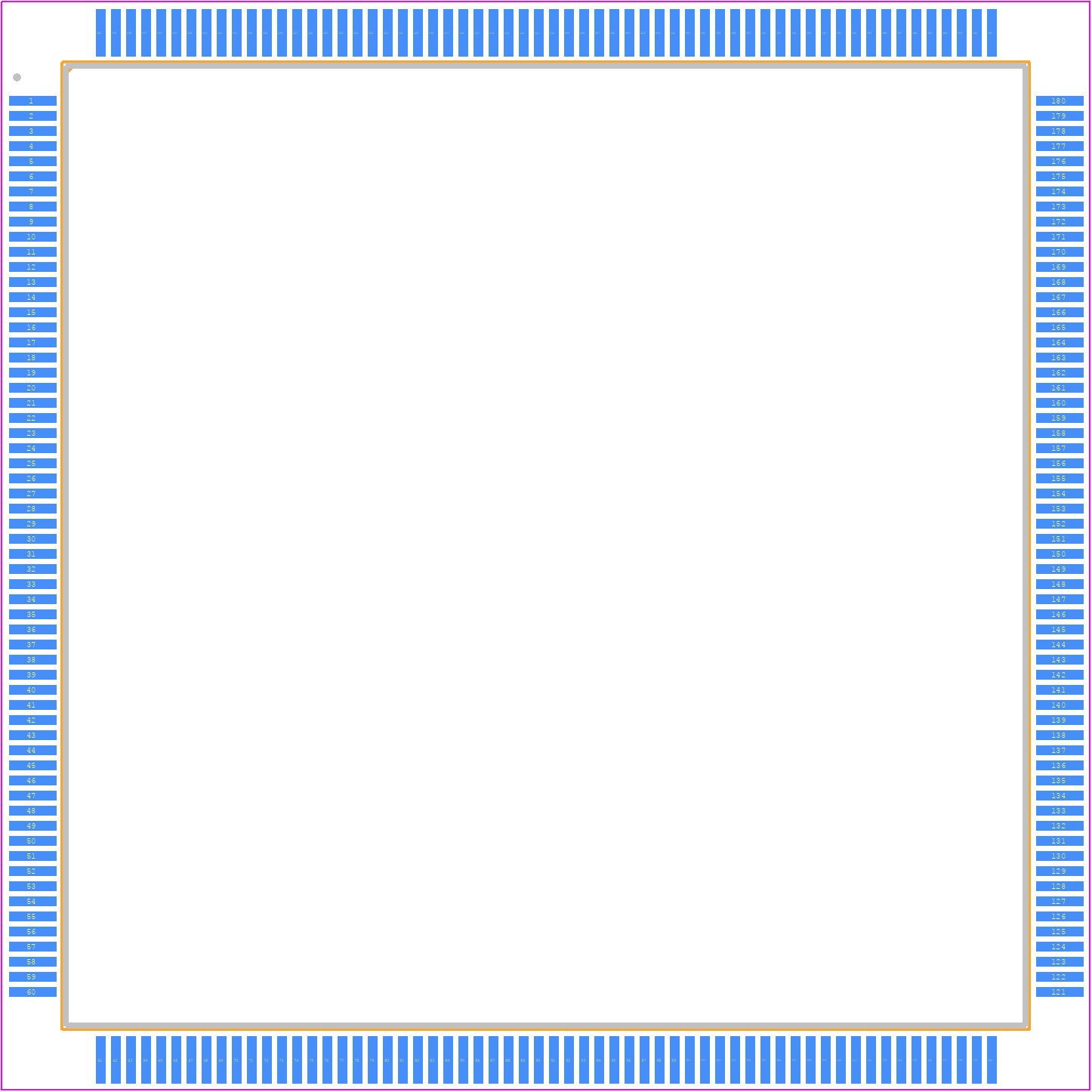

• Package Description:

  RQFP-240

• HTS Code:

  8542.31.00.55

• Manufacturer:

  Intel Corporation

• YTEOL:

  0

• Additional Feature:

  2880 LOGIC ELEMENTS

• Clock Frequency-Max:

  62.89 MHz

• JESD-30 Code:

  S-PQFP-G240

• JESD-609 Code:

  e3

• Length:

  32 mm

• Moisture Sensitivity Level:

  3

• Number of Dedicated Inputs:

  4

• Number of I/O Lines:

  189

• Number of Inputs:

  189

• Number of Logic Cells:

  2880

• Number of Outputs:

  189

• Number of Terminals:

  240

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  4 DEDICATED INPUTS, 189 I/O

• Output Function:

  REGISTERED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HFQFP

• Package Equivalence Code:

  HQFP240,1.37SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, FINE PITCH

• Programmable Logic Type:

  LOADABLE PLD

• Propagation Delay:

  0.6 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.1 mm

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  32 mm
